PNZ150

NPN PHOTOTRANS 800NM SIDE VIEW

product image

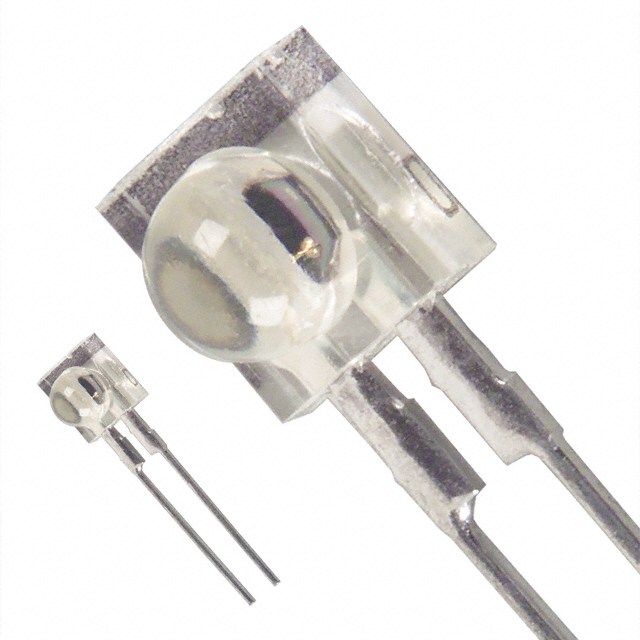

PNZ150 Picture
See larger image
SeekIC No. : 004137347 Detail

PNZ150: NPN PHOTOTRANS 800NM SIDE VIEW

PNZ150 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PNZ150
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: * Manufacturer: Panasonic Electronic Components - Semiconductor Products
Voltage - Collector Emitter Breakdown (Max): 20V Current - Collector (Ic) (Max): 20mA
Current - Dark (Id) (Max): 1µA Wavelength: 800nm
Package / Case : SOIC-32 Wide Viewing Angle: 70°
Power - Max: 100mW Mounting Type: Through Hole
Orientation: Side View

Description

Series: *
Power - Max: 100mW
Mounting Type: Through Hole
Orientation: Side View
Wavelength: 800nm
Current - Collector (Ic) (Max): 20mA
Viewing Angle: 70°
Package / Case: Radial
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Voltage - Collector Emitter Breakdown (Max): 20V
Current - Dark (Id) (Max): 1µA


Features:

• High sensitivity
• Wide spectral sensitivity characteristics, suited for detecting GaAs LEDs
• Low dark current
• Side-view plastic mold type package


Specifications

Parameter
Symbol
Rating
Unit
Collector-emitter voltage (Base open)
VCEO
20
V
Collector current
IC
20
mA
Collector power dissipation
PC
100
mW
Operating ambient temperature
Topr
25 to +85
°C
Storage temperature
Tstg
30 to +100
°C



Parameters:

Technical/Catalog InformationPNZ150
VendorPanasonic - SSG
CategorySensors, Transducers
Voltage - Collector Emitter Breakdown (Max)20V
Current - Collector (Ic) (Max)20mA
Current - Dark (Id) (Max)1A
Power - Max100mW
OrientationSide View
Mounting TypeThrough Hole
Package / CaseRadial
Wavelength800nm
Viewing Angle70°
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names PNZ150
PNZ150
