Purchase PNZ313, In-stock PNZ313 From SeekIC.
MFG:PANASONIC D/C:07+
- Table of contents:
PNZ313
-
Suppliers
DataSheet
General Description
PNZ313 Maximum Ratings
Ta = 25°C
|
Parameter |
Symbol |
Rating |
Unit |
| Reverse voltage |
VR |
30 |
V |
| Power dissipation |
PD |
100 |
mW |
| Operating ambient temperature |
Topr |
−30 to +80 |
°C |
| Storage temperature |
Tstg |
−40 to +80 |
°C |
PNZ313 Features
• Fast response which is well suited to high speed modulated light
detection: tr , tf = 50 ns (typ.)
• High sensitivity, high reliability
• Peak emission wavelength matched with infrared light emitting
diodes: p = 940 nm (typ.)
• Wide detection area, wide half-power angle: = 65° (typ.)
• Adoption of visible light cutoff resin
detection: tr , tf = 50 ns (typ.)
• High sensitivity, high reliability
• Peak emission wavelength matched with infrared light emitting
diodes: p = 940 nm (typ.)
• Wide detection area, wide half-power angle: = 65° (typ.)
• Adoption of visible light cutoff resin

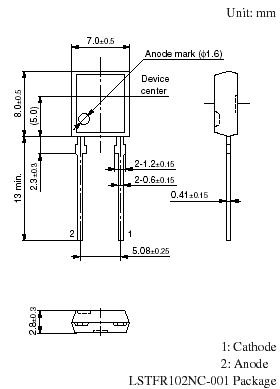

PNZ313 Connection Diagram
PNZ313
PDF/DataSheet Download
- Datasheet: PNZ313
- File Size: 45649 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
