PNZ334

PIN PHOTO DIODE

product image

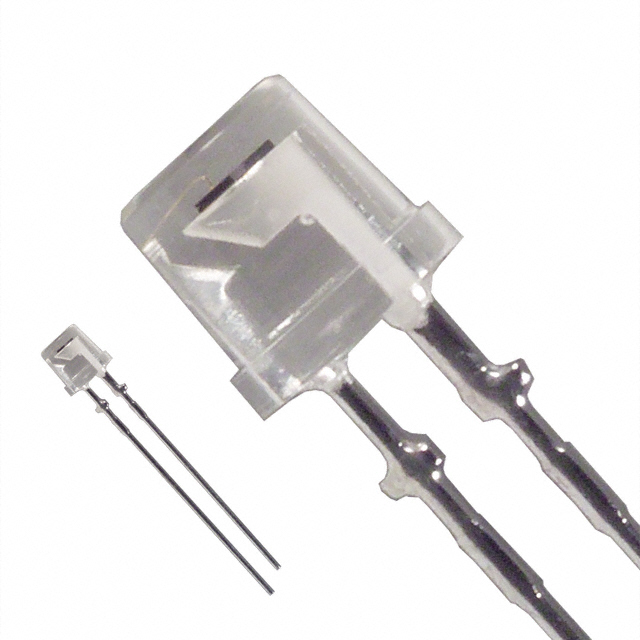

PNZ334 Picture
See larger image
SeekIC No. : 004136905 Detail

PNZ334: PIN PHOTO DIODE

PNZ334 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PNZ334
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Panasonic Electronic Components - Semiconductor Products
Wavelength: 850nm Color - Enhanced: -
Spectral Range: - Diode Type: PIN
Responsivity @ nm: - Package / Case : SMD/SMT
Response Time: 2ns Voltage - DC Reverse (Vr) (Max): 30V
Current - Dark (Typ): 0.1nA Active Area: -
Viewing Angle: 140° Operating Temperature: -25°C ~ 85°C

Description

Series: -
Color - Enhanced: -
Diode Type: PIN
Responsivity @ nm: -
Active Area: -
Voltage - DC Reverse (Vr) (Max): 30V
Package / Case: Radial, 5mm Dia (T 1 3/4)
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Spectral Range: -
Response Time: 2ns
Current - Dark (Typ): 0.1nA
Viewing Angle: 140°
Operating Temperature: -25°C ~ 85°C
Wavelength: 850nm


Features:

·Plastic type package (ø 5)
·High coupling capability suitable for plastic fiber
·High quantum efficiency
·High-speed response


Specifications

Parameter
Symbol
Ratings
Unit
Reverse voltage (DC)
VR
30
V
Power dissipation
PD
100
mW
Operating ambient temperature
Topr
25 to +85
˚C
Storage temperature
Tstg
30 to +100
˚C



Parameters:

Technical/Catalog InformationPNZ334
VendorPanasonic - SSG
CategorySensors, Transducers
Wavelength850nm
Package / CaseT 1 3/4
TypePhotodiode
Output TypeCurrent On Typ, 7A
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PNZ334
PNZ334
