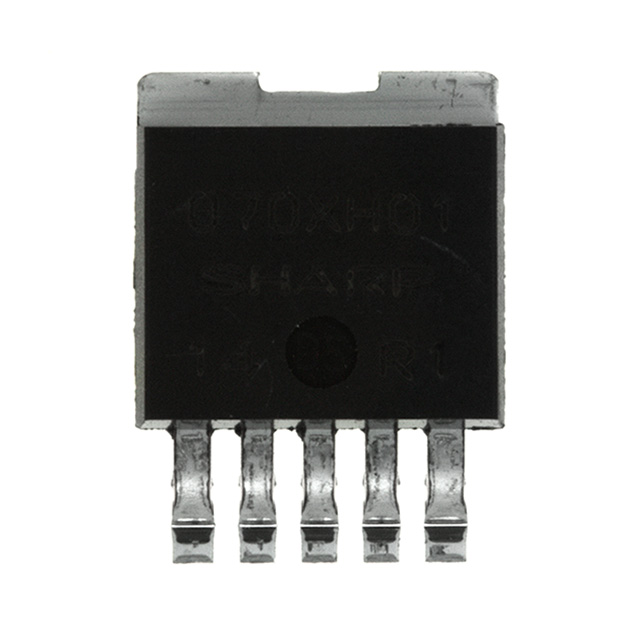

PQ070XH02Z Product Image

PQ0 Series Datasheet download

Five Points

Part Number: PQ070XH02Z











Urgent Purchase

PQ070XH02Z Maximum Ratings

Parameter Symbol Rating Unit
Input voltage VIN 10 V
ON/OFF control terminal voltage VC 10 V
Output adjustment terminal voltage VADJ 5 V
Output
current		 IO 2 A
Power dissipation PD 8 w
Junction temperature Tj 150 °C
Operating temperature Topr -40 to +85 °C
Storage temperature Tstg -40 to +150 °C
Soldering temperature Tsol 260(10s) °C

PQ070XH02Z Features

` Low voltage operation (Minimum operating voltage: 2.35V)
  2.5V input available 1.5 to 1.8V output
` Large output current type (IO: 2A)
` Low dissipation current
  (Quiescent current: MAX. 2mA
  Output OFF-state dissipation current: MAX. 5A)
` Low power-loss
` Built-in overcurrent and overheat protection functions
` TO-263 surface mount package

PQ070XH02Z Typical Application

·  Personal computers and peripheral equipment
·  Power supplies for various digital electronic equipment such
  as DVD player or STB
·  Power supplies for automotive equipment such as car
  navigation system.

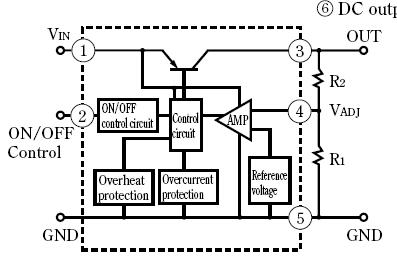

PQ070XH02Z Connection Diagram

PQ070XH02Z Connection Diagram

PQ070XH02Z datasheet

PQ070XH02ZP
PDF/DataSheet Download

  • Datasheet: PQ070XH02ZP
  • File Size: 68776 KB
  • Manufacturer: SHARP [Sharp Electrionic Components]
  • Click here to Download
