Part Number: PQ160QH06N



MFG: module

Package Cooled: LAMADA

D/C: 05+



Urgent Purchase

PQ160QH06N Maximum Ratings

Voltage Rating
Symbol
PQ160QH06N
Unit
Repetitive Peak Reverse Voltage
VRRM
60

V

Repetitive Peak Surge Reverse Voltage
VRRSM
65 (Pulse Width 1 sec, Duty 1/50)

V

Electrical Rating
Condition
Rating
Average Rectified Output Current
IO
 50Hz Half Sine Wave, per Arm
Tc=Tl=98°C
(Tl=Terminal Temperature)
160
A
RMS Forward Current
I F(RMS)
 Per Arm
226
A
Surge Forward Current
IFSM
 50 Hz Half Sine Wave,1cycle
Non-repetitive, per Arm
2800
°C
Operating JunctionTemperature Range
Tjw

-40 to +150
°C
Storage Temperature Range
Tstg

-40 to +125
N.m
Mounting torque
Ftor
 Case mounting(recommended)
3.0
Terminal Screw(recommended)
2.6

PQ160QH06N Features

* Four-Arms, Cathode Common to Base Plate
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability
* UL Recognized, File No. E187184

PQ160QH06N Typical Application

* High Frequency Rectification

PQ160QH06N datasheet

PQ160QH06N
PDF/DataSheet Download

  • Datasheet: PQ160QH06N
  • File Size: 65390 KB
  • Manufacturer: NIEC [Nihon Inter Electronics Corporation]
  • Click here to Download

Find PQ160QH06N Suppliers

  • ·PQ101A12
  •
  •
  • 103678 KB
  • PQ101A12 Datasheet Download
  • ·PQ101A13
  •
  •
  • 103678 KB
  • PQ101A13 Datasheet Download
  • ·PQ101A14
  •
  •
  • 103678 KB
  • PQ101A14 Datasheet Download
  • ·PQ105A1
  •
  •
  • 103678 KB
  • PQ105A1 Datasheet Download
  • ·PQ108A1
  •
  •
  • 103678 KB
  • PQ108A1 Datasheet Download
  • ·PQ12
  •
  •
  • 296700 KB
  • PQ12 Datasheet Download
  • ·PQ12DM1
  •
  •
  • 55736 KB
  • PQ12DM1 Datasheet Download
  • ·PQ12NF1
  •
  • Positive Fixed Voltage Regulator
  • 158779 KB
  • PQ12NF1 Datasheet Download

Related Part Number

PQ160QH06N Relative Products

  • PQ15RW21J00H

    PQ15RW21J00H

    IC REG LDO ADJ 2A TO-220

  • PQ15RW21

    PQ15RW21

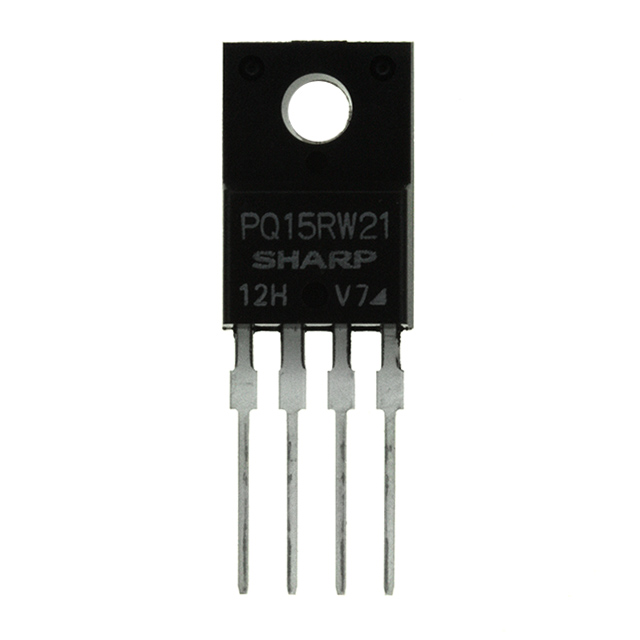

    SHARP's PQ15RW21 is 3.0 to 15V/2.0A output type general purpose low power-loss voltage regulator(TO-220).It contributes to energy and space saving of various electronic equipment such as AV, OA equipment.
