Position: Home > Datasheet list > PQ1 Series > Index P > PQ1CG21H2RZH
Electronica China

Purchase PQ1CG21H2RZH, In-stock PQ1CG21H2RZH From SeekIC.

MFG:Sharp Microelectronics  Category:Integrated Circuits (ICs)

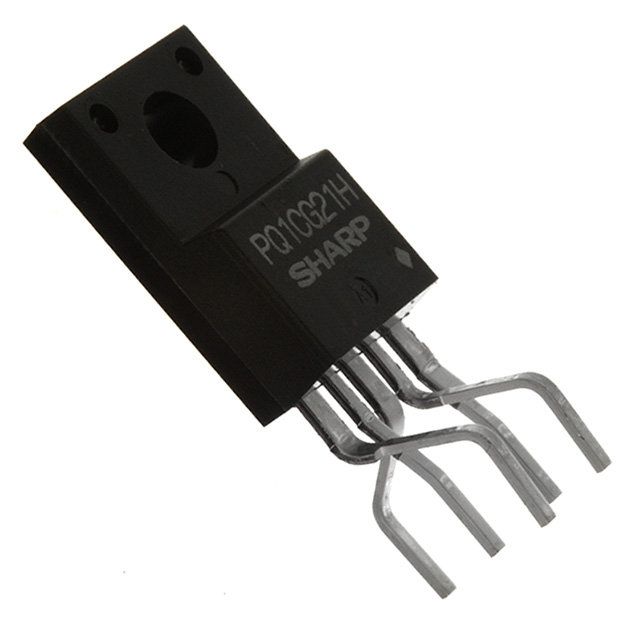

PQ1CG21H2RZH

PQ1 Series Datasheet download

Five Points

Part Number: PQ1CG21H2RZH

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics





Descriptions: IC REG CHOPPER ADJ 1.5A TO-220

Price Break

1
25
100
1000

Unit Price

1.92000
1.60000
1.12000
.83200

Extended Price

1.92
40.00
112.00
832.00

(All prices are in USD) Prices for reference only
Urgent Purchase

PQ1CG21H2RZH General Description

IC REG CHOPPER ADJ 1.5A TO-220

PQ1CG21H2RZH Parameters

Technical/Catalog InformationPQ1CG21H2RZH
VendorSharp Microelectronics
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck), Inverting
Number of Outputs1
Voltage - Input8 ~ 35 V
Voltage - Output1.26 ~ 35 V, -1.26 ~ -30 V
Current - Output1.5A
Power - Output14W
Package / CaseTO-220
PackagingTube
Internal Switch(s)Yes
SynchronousNo
Rds (On)-
Operating Temperature-20°C ~ 80°C
Frequency - Switching100kHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PQ1CG21H2RZH
PQ1CG21H2RZH
425 2296 5 ND
42522965ND
425-2296-5
