PQ1CG3032FZ
-
Suppliers
DataSheet
General Description
PQ1CG3032FZ Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| *1 Input voltage |
VIN |
40 |
V |
| Output adjustment terminal voltage |
VADJ |
7 |
V |
| Dropout voltage |
VI-O |
41 |
V |
| *2 Output-COM voltage |
VOUT |
-1 |
V |
| *3 ON/OFF control voltage |
VC |
−0.3 to +40 |
V |
| Switching current |
ISW |
3.5 |
A |
| *3 Power dissipation |
PD1 |
1.4 |
W |
|
PD2 |
14 |
W | |
| *4 Junction temperature |
Tj |
150 |
|
| Operating temperature |
Topr |
-20 to +80 |
|
| Storage temperature |
Tstg |
-40 to +150 |
|
| Soldering temperature |
Tsol |
260 (For 10s) |
*2 Voltage between VOUT terminal and COM terminal
*3 Voltage between ON/OFF control and COM terminal
*4 PD:With infinite heat sink
*5 Over heat protection may operate at the condition Tj=125°C to 150°C
*6 For 10s
PQ1CG3032FZ Features
1. Maximum switching current:3.5A
2. Built-in ON/OFF control function
3. Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence
4. Built-in oscillation circuit (Oscillation frequency:TYP. 150kHz)
5. Built-in overheat/overcurrent protection function
6. TO-220 package
7. Variable output voltage
(Output variable range:Vref to 35V/−Vref to −30V) [Possible to select step-down output/inversing output according to external connection circuit]
8. PQ1CG3032FZ:Zigzag forming
PQ1CG3032RZ:Self-stand forming
2. Built-in ON/OFF control function
3. Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence
4. Built-in oscillation circuit (Oscillation frequency:TYP. 150kHz)
5. Built-in overheat/overcurrent protection function
6. TO-220 package
7. Variable output voltage
(Output variable range:Vref to 35V/−Vref to −30V) [Possible to select step-down output/inversing output according to external connection circuit]
8. PQ1CG3032FZ:Zigzag forming
PQ1CG3032RZ:Self-stand forming
PQ1CG3032FZ Typical Application
1. CTV
2. Digital OA equipment
3. Facsimiles, printers and other OA equipment
4. Personal computers and amusement equipment
2. Digital OA equipment
3. Facsimiles, printers and other OA equipment
4. Personal computers and amusement equipment
PQ1CG3032FZ
PDF/DataSheet Download
- Datasheet: PQ1CG3032FZ
- File Size: 92277 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
- ·PQ101A12
- 103678 KB
- ·PQ101A13
- 103678 KB
- ·PQ101A14
- 103678 KB
- ·PQ105A1
- 103678 KB
- ·PQ108A1
- 103678 KB
- ·PQ12
- 296700 KB
- ·PQ12DM1
- 55736 KB
- ·PQ12NF1
- Positive Fixed Voltage Regulator
- 158779 KB
PQ1CG3032FZ Relative Products

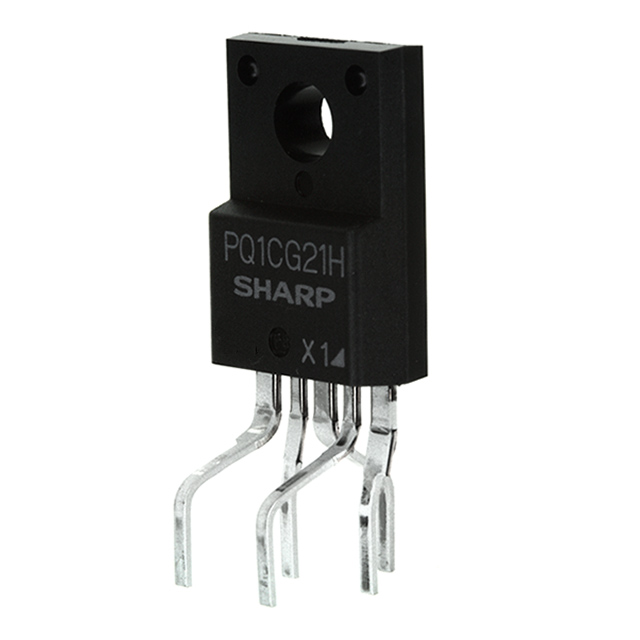

PQ1CG21H2RZH
