MFG:Sharp Microelectronics  Category:Integrated Circuits (ICs)

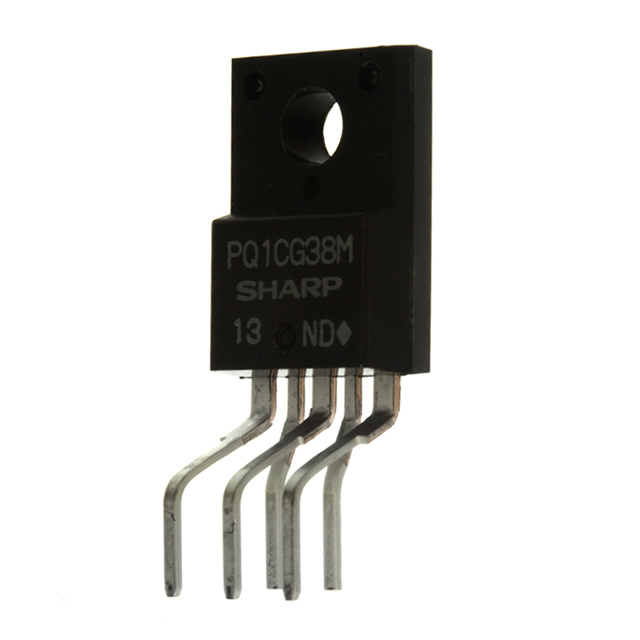

PQ1CG38M2FZH

PQ1 Series Datasheet download

Five Points

Part Number: PQ1CG38M2FZH

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics





Descriptions: IC REG CHOPPER ADJ .8A TO-220

Price Break

1
25
100
1000

Unit Price

1.65000
1.37520
.96250
.71500

Extended Price

1.65
34.38
96.25
715.00

(All prices are in USD) Prices for reference only
Urgent Purchase

PQ1CG38M2FZH General Description

IC REG CHOPPER ADJ .8A TO-220

PQ1CG38M2FZH Parameters

Technical/Catalog InformationPQ1CG38M2FZH
VendorSharp Microelectronics
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck), Inverting
Number of Outputs1
Voltage - Input8 ~ 35 V
Voltage - Output1.26 ~ 35 V, -1.26 ~ -30 V
Current - Output800mA
Power - Output14W
Package / CaseTO-220
PackagingTube
Internal Switch(s)Yes
SynchronousNo
Rds (On)-
Operating Temperature-20°C ~ 80°C
Frequency - Switching300kHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PQ1CG38M2FZH
PQ1CG38M2FZH
425 2299 5 ND
42522995ND
425-2299-5
