PS201
-
Suppliers
DataSheet
General Description
PS201 Maximum Ratings
| Maximum Recurrent Peak Reverse Voltage | PS200 | PS201 | PS202 | PS204 | PS206 | PS208 | PS2010 | UNITS |
| Maximum RMS Voltage | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum DC Blocking Voltage | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum RMS Voltage | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum DC Blocking Voltage |
2.0 |
A | ||||||
| Maximum Average Forward Current .375"(9.5mm) lead length at TA=60°C |
70.0 |
A | ||||||
| Peak Forward Surge Current, IFM (surge):8.3ms single half sine-wave superimposed on rated load(JEDEC method) |
1.10 |
V | ||||||
| Maximum Forward Voltage at 2.0A DC |
5.0 |
µA | ||||||
| Maximum DC Reverse Current at Rated DC Blocking Voltage TA=25°C |
500 |
µA | ||||||
| Maximum DC Reverse Current at Rated DC Blocking Voltage TA=100°C |
25.0 |
PF | ||||||
| Typical Junction capacitance (Note 1) |
25.0 |
°C/ W | ||||||
| Operating and Storage Temperature Range TJ,TSTG |
-55 to +150 |
°C | ||||||
2. Thermal resistance from junction to ambient and from junction to lead length 0.375"(9.5mm) P.C.B. mounted
PS201 Features
• Low cost
• High current capability
• Plastic package has Underwriters Laboratories
Flammability Classification 94V-O utilizing
Flame Retardant Epoxy Molding Compound.
• 2.0 ampere operation at TA = 55OC with no thermal runaway
• Exceeds environmental standards of MIL-S-19500/228
• Low leakage
• High current capability
• Plastic package has Underwriters Laboratories
Flammability Classification 94V-O utilizing
Flame Retardant Epoxy Molding Compound.
• 2.0 ampere operation at TA = 55OC with no thermal runaway
• Exceeds environmental standards of MIL-S-19500/228
• Low leakage
PS201
PDF/DataSheet Download
- Datasheet: PS201
- File Size: 45335 KB
- Manufacturer: PANJIT [Pan Jit International Inc.]
- Click here to Download
- ·PS2
- BOX POWER SUPPLY STYLE BLACK
- 57193 KB
- ·PS200
- PANJIT [Pan Jit International Inc.]
- PLASTIC SILICON RECTIFIER(VOLTAGE 50 to 1000 Volts CURRENT - 2.0 Amperes)
- 45335 KB
- ·PS20005G
- MESSUMFORMER
- 188196 KB
- ·PS2000ACQ
- P&S
- A Network Communication Controller Designed to Connect Any MCU Application System To A Gateway(单片网络通信控制器,用于控制MCU和网络服务器之间的信息交换)
- 609099 KB
- ·PS2001(中文)
- P&S
- Serial Output Data Acquisition Circuit(串行输出数据采集芯片)
- 51756 KB
- ·PS20015G
- MESSUMFORMER
- 188196 KB
- ·PS2001B
- NPN-OUTPUT DC-INPUT OPTOCOUPLER
- 57156 KB
- ·PS2002(中文)
- P&S
- Serial Output Data Acquisition Circuit(串行输出数据采集芯片)
- 56886 KB
PS201 Relative Products
PS200R
PS2000A
P&S DataCom Corporation has developed an internet-enabling technology, called WebChip™ PS2000A, for any microcontroller-based application. This technology includes a silicon chip (the WebChip™) and a gateway. The WebChip™ unifies the mi...
PS200
The PS200 is a configurable Switch mode charger which is comprised of a PIC16F microcontroller core and precision analog circuitry.

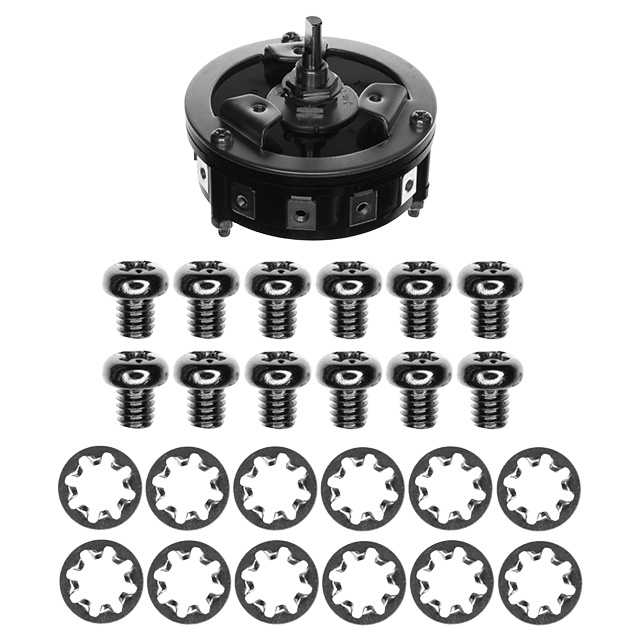

PS1N-RO
