Purchase PS2566L-1-F3-A, In-stock PS2566L-1-F3-A From SeekIC.
MFG:NEC Category:Isolators

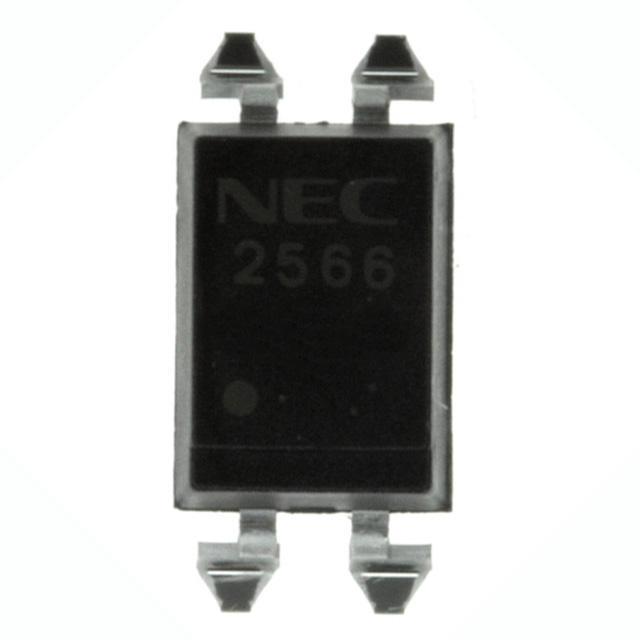

Part Number: PS2566L-1-F3-A
Category: Isolators
MFG: NEC
Descriptions: PHOTOCOUPLER 1CH TRANS OUT SM
- Table of contents:
PS2566L-1-F3-A
-
Suppliers
DataSheet
General Description
PS2566L-1-F3-A General Description
PHOTOCOUPLER 1CH TRANS OUT SM
PS2566L-1-F3-A Parameters
| Technical/Catalog Information | PS2566L-1-F3-A |
| Vendor | NEC |
| Category | Isolators |
| Voltage - Isolation | 5000Vrms |
| Input Type | AC, DC |
| Output Type | Darlington |
| Current - Output / Channel | 200mA |
| Voltage - Output | 4V |
| Vce Saturation (Max) | 1V |
| Current Transfer Ratio (Min) | 200% @ 1mA |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD |
| Packaging | Tape & Reel (TR) |
| Number of Circuits | 1 - Single |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PS2566L 1 F3 A PS2566L1F3A PS2566L 1TR ND PS2566L1TRND PS2566L-1TR |
