Part Number: PS2634



MFG: NEC

Package Cooled: 0437+

D/C: SMD6

Description: PS2633, PS2633L, PS2634, and PS2634L are optically coupled isolators containing a GaAs light emitting ...


Urgent Purchase

PS2634 General Description


PS2633, PS2633L, PS2634, and PS2634L are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon Darlington-connected phototransistor. PS2633 and PS2634 are in a plastic DIP (Dual In-Line Package). Ps2633L and PS2634L are lead bending type (Gull-wing) for surface mount. PS2633 and PS2633L have a base pin and PS2634 and PS2634L have no base pin.

PS2634 Maximum Ratings

SYMBOLS PARAMETERS
UNITS
RATINGS
Diode
VR Reverse Voltage
V
6
IF Forward Current (DC)
mA
80
PD Power Dissipation
mW
150
I F (Peak) Peak Forward Current
PW = 100 ms, Duty Cycle 1%
A
1
Transistor
VCEO Collector to Emitter Voltage
V
300
VEBO Emitter to Base Voltage2
V
6
IC Collector Current
mA
150
PC Power Dissipation
mW
300
Coupled
BV Isolation Voltage3
Vr.m.s.
5000
TSTG Storage Temperature
°C
-55 to +150
TOP Operating Temperature
°C
-55 to +100

PS2634 Features

• HIGH ISOLATION VOLTAGE BV: 5 k Vr.m.s. MIN
• HIGH COLLECTOR TO EMITTER VOLTAGE VCEO: 300 V MIN
• ULTRA HIGH CURRENT TRANSFER RATIO CTR: 1000% MIN
• HIGH SPEED SWITCHING tr,tf = 100 s TYP

PS2634 Typical Application

• TELEPHONE/TELEGRAPH LINE RECEIVER
• POWER SUPPLY

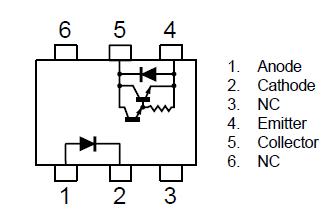

PS2634 Connection Diagram

PS2634 Connection Diagram

PS2634 datasheet

PS2
PDF/DataSheet Download
