Part Number: PS2651L2
Description: PS2651and PS2652 are optically coupled isolators containing a GaAs light emitting diode and an NPN sil...
- Table of contents:
PS2651L2
-
Suppliers
DataSheet
General Description
PS2651L2 General Description
PS2651and PS2652 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic DIP (Dual In-Line Package). PS2651 has a base pin and PS2652 has no base pin. Creepage distance and clearance of leads are over 8 millimeters. PS2651L2 and PS2652L2 are lead bending type (Gull-wing) for surface mounting.
PS2651L2 Maximum Ratings
| SYMBOLS | PARAMETERS | UNITS | RATINGS |
| Diode | |||
| VR | Reverse Voltage | V | 6 |
| IF | Forward Current | mA | 80 |
| PD | Power Dissipation | mW | 15 |
| IF (Peak) | Peak Forward Current PW = 100 s, Duty Cycle 1% |
A | 1 |
| Transistor | |||
| VCEO | Collector to Emitter Voltage | V | 80 |
| VECO | Emitter to Collector Voltage | V | 7 |
| IC | Collector Current | mA | 50 |
| PC | Power Dissipation | mW | 150 |
| Coupled | |||
| BV | Isolation Voltage2 | Vr.m.s. | 5000 |
| TSTG | Storage Temperature | °C | -55 to +150 |
| TOP | Operating Temperature | °C | -55 to +100 |
PS2651L2 Features
HIGH ISOLATION VOLTAGE
BV: 5 k Vr.m.s. MIN
LONG CREEPAGE AND CLEARANCE DISTANCE
8 mm MIN
HIGH COLLECTOR TO EMITTER VOLTAGE
VCEO: 80 V MIN
HIGH SPEED SWITCHING
tr = 3 s, tf = 5 s TYP
HIGH CURRENT TRANSFER RATIO
CTR = 200% TYP
6 PIN DUAL IN-LINE PACKAGE
BV: 5 k Vr.m.s. MIN
LONG CREEPAGE AND CLEARANCE DISTANCE
8 mm MIN
HIGH COLLECTOR TO EMITTER VOLTAGE
VCEO: 80 V MIN
HIGH SPEED SWITCHING
tr = 3 s, tf = 5 s TYP
HIGH CURRENT TRANSFER RATIO
CTR = 200% TYP
6 PIN DUAL IN-LINE PACKAGE
PS2651L2 Typical Application
AC LINE/DIGITAL LOGIC
DIGITAL LOGIC INTERFACE
TWISTED PAIR LINE RECEIVER
TELEPHONE/TELEGRAPH LINE RECEIVER
HIGH FREQUENCY POWER SUPPLY FEEDBACK CONTROL
RELAY CONTACT MONITOR
POWER SUPPLY MONITOR
DIGITAL LOGIC INTERFACE
TWISTED PAIR LINE RECEIVER
TELEPHONE/TELEGRAPH LINE RECEIVER
HIGH FREQUENCY POWER SUPPLY FEEDBACK CONTROL
RELAY CONTACT MONITOR
POWER SUPPLY MONITOR

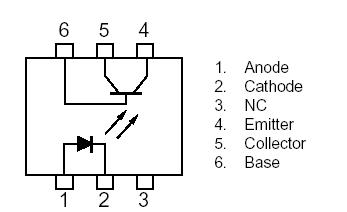

PS2651L2 Connection Diagram
PS2651L2
PDF/DataSheet Download
- Datasheet: PS2651L2
- File Size: 127087 KB
- Manufacturer: NEC [NEC]
- Click here to Download
