MFG:NEC  Category:Isolators

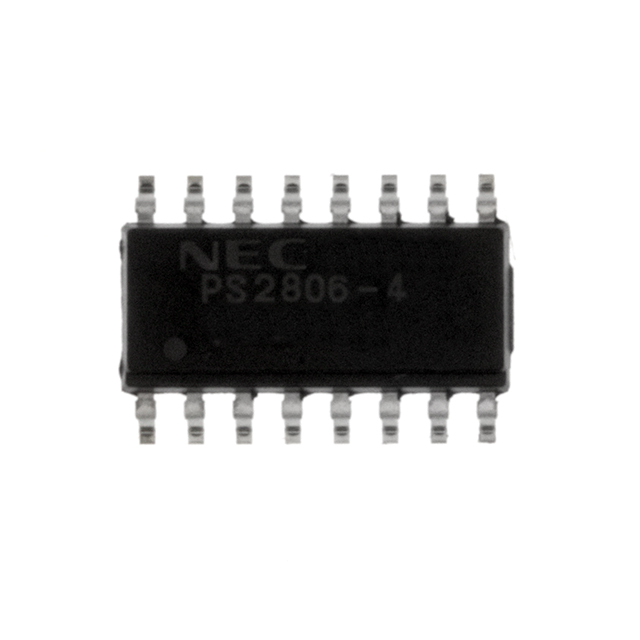

PS2806-4-F3-A Product Image

PS2 Series Datasheet download

Five Points

Part Number: PS2806-4-F3-A

Category: Isolators

MFG: NEC





Descriptions: OPTOISOLATOR 4CH DARL OUT SMD

Price Break

2500
10000

Unit Price

2.95100
2.83750

Extended Price

7377.50
28375.00

(All prices are in USD) Prices for reference only
Urgent Purchase

PS2806-4-F3-A General Description

OPTOISOLATOR 4CH DARL OUT SMD

PS2806-4-F3-A Parameters

Technical/Catalog InformationPS2806-4-F3-A
VendorNEC
CategoryIsolators
Voltage - Isolation2500Vrms
Input TypeAC, DC
Output TypeDarlington
Current - Output / Channel100mA
Voltage - Output40V
Vce Saturation (Max)1V
Current Transfer Ratio (Min)200% @ 1mA
Mounting TypeSurface Mount
Package / Case16-SMD
PackagingTape & Reel (TR)
Number of Circuits4 - Quad
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PS2806 4 F3 A
PS28064F3A
PS2806 4ATR ND
PS28064ATRND
PS2806-4ATR
