PS9702B

Features:

General
·1 serial input port for 6Ch and 3 serial input ports for 2Ch (or 2 serial input ports for 6Ch)
·SPDIF receiver for 2Ch non-encoded PCM input
·Supports 16/18/20/24 bit Input
·Supports 32kHz~192kHz Input Sample Rate
·I²C or SPI control bus
·100 pin QFP Package
·3.3V Single Power Supply

Digital Filter and Sample-rate-converter Section
·On chip Sample rate converter
·On chip Digital De-emphasis filter for CD input signal

Preamplifier Section
·Input mixing function
·Microphone mixing function
·Stereo REC output
·Parametric EQ (4 band, 1dB/step) per channel
·Tone control (±15dB, 1dB/step) per channel
·Bass management function
·Volume control (+24 ~ -70dB, 0.5dB/step) per channel
·Dynamic range compression function
·Soft and Hard Mute Functions

PCM-to-PWM modulator section
·6 channel PWM Amplification output
·95 dB Dynamic Range (typical)


Application

· DVD Receiver (DVD player plus 5.1ch Receiver)
· Integrated A/V Receiver
·HDTV sets
·Car A/V Systems
·DVD Add-On Cards for High-End PCs
· Digital Audio Workstations
·Other Multi-Channel Digital Audio Systems

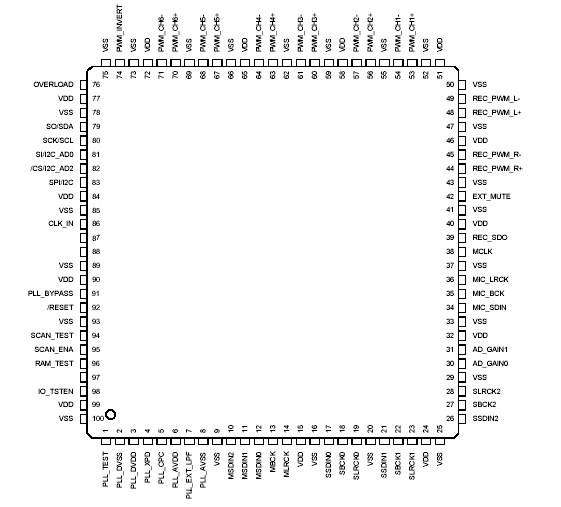

Pinout




Specifications

Parameter	Min	Max	Units
Power Supply Voltage (VDD to VSS)	VSS 0.3	4.0	V
Input Current, (Any pin except Supply)	-	±10	mA
Output Current (/Pin)	-	±30	mA
Input Voltage	VSS 0.5	+7.0	V
Storage Temperature	-65	+150

Stresses greater than those listed under Absolute Maximum Ratings may cause permanent damage to
the device. This is a stress rating only; functional operation of the device at these or any other conditions
above those indicated in the operational section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.


Description

The PS9702B is a highly integrated system-on-chip solution for multi-channel AV systems. It is 6 channel PCM to PWM modulator with sample rate converter and pre-amplifier functions. It features six 24-bit audio digital-to-digital converters and over-sampling digital filters, a sample rate converter, an audio DSP that functions as an on-chip pre-amplifier with equalizer, volume control, bass management, and compressor functions. The PS9702B accepts industry-standard audio data formats with 16- to 24-bit audio data. Sampling rates of up to 192 kHz are supported.
