PSD813F2
-
Suppliers
DataSheet
General Description
PSD813F2 Maximum Ratings
| Symbol | Parameter | Min. | Max. | Unit |
| TSTG | Storage Temperature | 65 | 125 | °C |
| TLEAD | Lead Temperature during Soldering (20 seconds max.)1 | 235 | °C | |
| VIO | Input and Output Voltage (Q = VOH or Hi-Z) | 0.6 | 7.0 | V |
| VCC | Supply Voltage | 0.6 | 7.0 | V |
| VPP | Device Programmer Supply Voltage | 0.6 | 14.0 | V |
| VESD | Electrostatic Discharge Voltage (Human Body model) 2 | 2000 | 2000 | V |
PSD813F2 Features
FLASH IN-SYSTEM PROGRAMMABLE (ISP) PERIPHERAL FOR 8-BIT MCUS
DUAL BANK FLASH MEMORIES
UP TO 2 Mbit OF PRIMARY FLASH MEMORY (8 Uniform Sectors, 32K x8)
UP TO 256 Kbit SECONDARY FLASH MEMORY (4 Uniform Sectors)
Concurrent operation: READ from one memory while erasing and writing the other
UP TO 256 Kbit BATTERY-BACKED SRAM
27 RECONFIGURABLE I/O PORTS
ENHANCED JTAG SERIAL PORT
PLD WITH MACROCELLS
Over 3000 Gates of PLD: CPLD and DPLD
CPLD with 16 Output Macrocells (OMCs) and 24 Input Macrocells (IMCs)
DPLD - user defined internal chip select decoding
27 INDIVIDUALLY CONFIGURABLE I/O PORT PINS
The can be used for the following functions:
MCU I/Os
PLD I/Os
Latched MCU address output
Special function I/Os.
16 of the I/O ports may be configured as open-drain outputs.
IN-SYSTEM PROGRAMMING (ISP) WITH JTAG
Built-in JTAG compliant serial port allows full-chip In-System Programmability
Efficient manufacturing allow easy product testing and programming
Use low cost FlashLINK cable with PC
PAGE REGISTER
Internal page register that can be used to expand the microcontroller address space by a factor of 256
PROGRAMMABLE POWER MANAGEMENT
HIGH ENDURANCE:
100,000 Erase/WRITE Cycles of Flash Memory
1,000 Erase/WRITE Cycles of PLD
15 Year Data Retention
5V±10% SINGLE SUPPLY VOLTAGE
STANDBY CURRENT AS LOW AS 50µA
DUAL BANK FLASH MEMORIES
UP TO 2 Mbit OF PRIMARY FLASH MEMORY (8 Uniform Sectors, 32K x8)
UP TO 256 Kbit SECONDARY FLASH MEMORY (4 Uniform Sectors)
Concurrent operation: READ from one memory while erasing and writing the other
UP TO 256 Kbit BATTERY-BACKED SRAM
27 RECONFIGURABLE I/O PORTS
ENHANCED JTAG SERIAL PORT
PLD WITH MACROCELLS
Over 3000 Gates of PLD: CPLD and DPLD
CPLD with 16 Output Macrocells (OMCs) and 24 Input Macrocells (IMCs)
DPLD - user defined internal chip select decoding
27 INDIVIDUALLY CONFIGURABLE I/O PORT PINS
The can be used for the following functions:
MCU I/Os
PLD I/Os
Latched MCU address output
Special function I/Os.
16 of the I/O ports may be configured as open-drain outputs.
IN-SYSTEM PROGRAMMING (ISP) WITH JTAG
Built-in JTAG compliant serial port allows full-chip In-System Programmability
Efficient manufacturing allow easy product testing and programming
Use low cost FlashLINK cable with PC
PAGE REGISTER
Internal page register that can be used to expand the microcontroller address space by a factor of 256
PROGRAMMABLE POWER MANAGEMENT
HIGH ENDURANCE:
100,000 Erase/WRITE Cycles of Flash Memory
1,000 Erase/WRITE Cycles of PLD
15 Year Data Retention
5V±10% SINGLE SUPPLY VOLTAGE
STANDBY CURRENT AS LOW AS 50µA

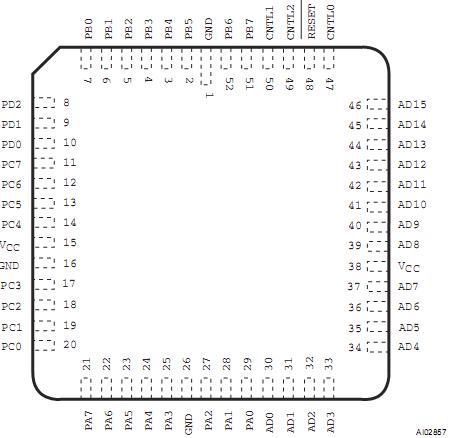

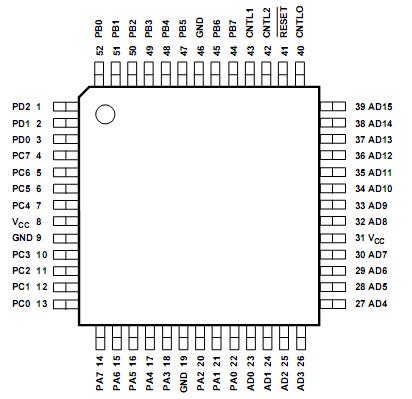

PSD813F2 Connection Diagram
PSD813F2
PDF/DataSheet Download
- Datasheet: PSD813F2
- File Size: 1208905 KB
- Manufacturer: STMicroelectronics
- Click here to Download
