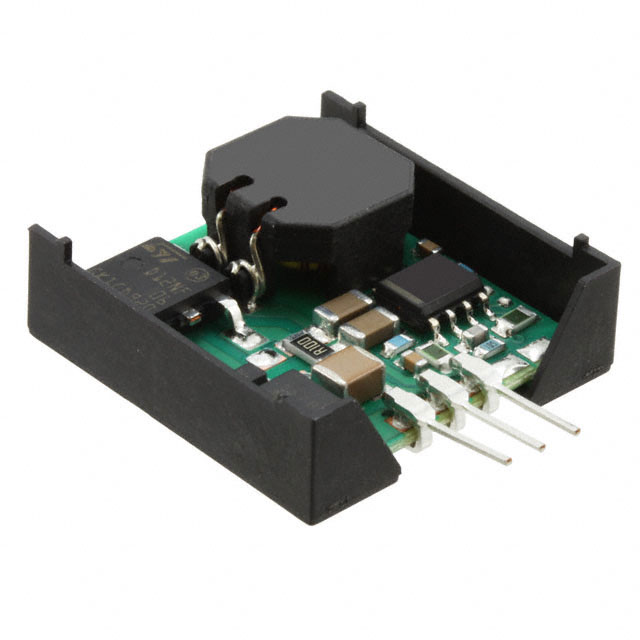

See larger image

SeekIC No. : 003623765 Detail

PT79SR109V: REGULATOR -9V -1.5A 3PSIP VERT

PT79SR109V Data Sheet

Get Latest Price

Part Number:: PT79SR109V
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PT79SR100 evaluate
Features: • High Efficiency > 85%• Self-Contained Inductor• Short Circuit Pro...
PT79SR105H evaluate
US $11.11 - 12.86 / Piece

DC/DC Converters -5Vout 1.5A Wide-Inp Neg Step-Down ISR
PT79SR105S evaluate
US $11.11 - 12.86 / Piece

DC/DC Converters -5Vout 1.5A Wide-Inp Neg Step-Down ISR

Product Details

Quick Details

Series:	PT79SR100	Manufacturer:	Texas Instruments
Number of DAC Outputs :	2	Type:	Non-Isolated (POL)
Number of Outputs:	1	Voltage - Input (Min):	-13V
Voltage - Input (Max):	-30V	Voltage - Output 1:	-9V
Voltage - Output 2:	-	Voltage - Output 3:	-
Current - Output (Max):	1.5A	Power (Watts) - Manufacture Series:	13W
Voltage - Isolation:	*	Features:	*
Mounting Type:	Through Hole	Package / Case:	3-SIP Module
Size / Dimension:	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)	Packaging:	Tray
Operating Temperature:	-40°C ~ 85°C

Description

Number of Outputs: 1
Voltage - Output 2: -
Voltage - Output 3: -
Operating Temperature: -40°C ~ 85°C
Type: Non-Isolated (POL)
Mounting Type: Through Hole
Packaging: Tray
Efficiency: 85%
Voltage - Isolation: *
Features: *
Package / Case: 3-SIP Module
Manufacturer: Texas Instruments
Current - Output (Max): 1.5A
Power (Watts) - Manufacture Series: 13W
Size / Dimension: 0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Series: PT79SR100
Voltage - Input (Max): -30V
Voltage - Input (Min): -13V
Voltage - Output 1: -9V

Parameters:

Technical/Catalog Information	PT79SR109V
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	-9 ~ -30VDC
Output	-9.0VDC
Power (Watts)	13W
Number of Outputs	1
1st Output	-9 VDC @ 1.5A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Through Hole
Packaging	Tray
Package / Case	3-SIP MODULE
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PT79SR109V PT79SR109V
