PT7A4401C
-
Suppliers
DataSheet
General Description
PT7A4401C Maximum Ratings
Storage Temperature......................................................-65oC to +150oC
Ambient Temperature with Power Applied........................-40oC to +85oC
Supply Voltage to Ground Potential (Inputs & VCC Only)......-0.3 to 7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only).....-0.3 to 7.0V
DC Input Voltage....................................................................-0.3 to 7.0V
DC Output Current.........................................................................120mA
Power Dissipation.........................................................................900mW
Ambient Temperature with Power Applied........................-40oC to +85oC
Supply Voltage to Ground Potential (Inputs & VCC Only)......-0.3 to 7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only).....-0.3 to 7.0V
DC Input Voltage....................................................................-0.3 to 7.0V
DC Output Current.........................................................................120mA
Power Dissipation.........................................................................900mW
PT7A4401C Features
•Meets jitter requirements for AT&T TR62411 Stratum 4 and Stratum 4 Enhanced for DS1 interfaces, and for ETSI ETS300 011 for E1 inter-faces
•Provides C1.5, C3</a>, C2, C4</a>, C8 and C16</a> output clock signals
•Provides 3 kinds of 8kHz framing signals
•Selectable 1.544MHz, 2.084MHz or 8kHz input reference signals
•Operates in either Normal or Free-Run states
•Enhanced in jitter and duty cycle comparing with PT7A4401B
•Package: 28-pin PLCC (PT7A4401CJ)
•Provides C1.5, C3</a>, C2, C4</a>, C8 and C16</a> output clock signals
•Provides 3 kinds of 8kHz framing signals
•Selectable 1.544MHz, 2.084MHz or 8kHz input reference signals
•Operates in either Normal or Free-Run states
•Enhanced in jitter and duty cycle comparing with PT7A4401B
•Package: 28-pin PLCC (PT7A4401CJ)
PT7A4401C Typical Application
•Synchronization and timing control for multitrunk T1 and E1 systems
•ST-BUS clock and frame pulse sources
•ST-BUS clock and frame pulse sources

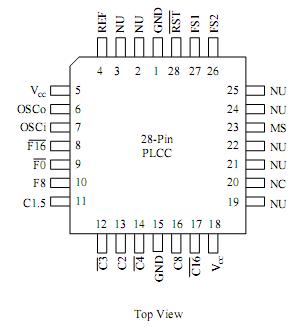

PT7A4401C Connection Diagram
PT7A4401C
