Part Number: PTN78060A
Description: The PTN78060A is a series of high-efficiency, buck-boost, integrated switching regulators (ISR), that ...
- Table of contents:
PTN78060A
-
Suppliers
DataSheet
General Description
PTN78060A General Description
The PTN78060A is a series of high-efficiency, buck-boost, integrated switching regulators (ISR), that represent the third generation in the evolution of the (PT)78NR100 series of products. In new designs, the PTN78060A series should also be considered in place of the PT6640 series of single in-line pin (SIP) products. In all cases, the PTN78060A has either similar or improved electrical performance characteristics. The caseless, double-sided package has excellent thermal characteristics, and is compatible with TI's roadmap for RoHS and lead-free compliance.
Operating from a wide-input voltage range of 9 V to 29 V, the PTN78060A provides high-efficiency, positive-to-negative voltage conversion for loads of up to 3 A. The output voltage can be set to any value over a wide adjustment range using a single external resistor. The adjust range is 15 V to 3 V.
The PTN78060A is suited to a wide variety of general-purpose industrial applications that operate off 12-V, 24-V, or tightly regulated 28-V dc power.
PTN78060A Maximum Ratings
| UNIT | |||
|---|---|---|---|
| TA Operating free-air temperature | Over VI range | 40°C to 85°C | |
| Solder reflow temperature | Surface temperature of module body or pins | Horizontal SMD (suffix AS) |
235°C |
| Horizontal SMD (suffix AZ) | 260°C | ||
| Tstg Storage temperature | 40°C to125°C | ||
| PO Output power | |VO| 5 V | 15 W | |
PTN78060A Features
` Up to 3-A Output Current
` Wide-Input Voltage (9 V to 29 V)
` Wide-Output Voltage Adjust (15 V to 3 V)
` High Efficiency (Up to 88%)
` Undervoltage Lockout
` Output Current Limit
` Overtemperature Shutdown
` Operating Temperature: 40°C to 85°C
` Surface-Mount Package Available
` Wide-Input Voltage (9 V to 29 V)
` Wide-Output Voltage Adjust (15 V to 3 V)
` High Efficiency (Up to 88%)
` Undervoltage Lockout
` Output Current Limit
` Overtemperature Shutdown
` Operating Temperature: 40°C to 85°C
` Surface-Mount Package Available
PTN78060A Typical Application
· General-Purpose, Industrial Controls, HVAC Systems
· Test and Measurement, Medical Instrumentation
· AC/DC Adaptors, Vehicles, Marine, and Avionics
PTN78060A
PDF/DataSheet Download
- Datasheet: PTN78060A
- File Size: 1447914 KB
- Manufacturer: TI [Texas Instruments]
- Click here to Download
- ·PTN04050A
- TI [Texas Instruments]
- 6-W, 3.3-V/5-V INPUT, WIDE ADJUST OUTPUT, POSITIVE-TO-NEGATIVE CONVERTER
- 1355666 KB
- ·PTN04050AAD
- TI [Texas Instruments]
- 6-W, 3.3-V/5-V INPUT, WIDE ADJUST OUTPUT, POSITIVE-TO-NEGATIVE CONVERTER
- 1355666 KB
- ·PTN04050AAH
- TI [Texas Instruments]
- 6-W, 3.3-V/5-V INPUT, WIDE ADJUST OUTPUT, POSITIVE-TO-NEGATIVE CONVERTER
- 1355666 KB
- ·PTN04050AAS
- TI [Texas Instruments]
- 6-W, 3.3-V/5-V INPUT, WIDE ADJUST OUTPUT, POSITIVE-TO-NEGATIVE CONVERTER
- 1355666 KB
- ·PTN04050AAST
- TI [Texas Instruments]
- 6-W, 3.3-V/5-V INPUT, WIDE ADJUST OUTPUT, POSITIVE-TO-NEGATIVE CONVERTER
- 1454739 KB
- ·PTN04050AAZ
- TI [Texas Instruments]
- 6-W, 3.3-V/5-V INPUT, WIDE ADJUST OUTPUT, POSITIVE-TO-NEGATIVE CONVERTER
- 1355666 KB
- ·PTN04050AAZT
- TI [Texas Instruments]
- 6-W, 3.3-V/5-V INPUT, WIDE ADJUST OUTPUT, POSITIVE-TO-NEGATIVE CONVERTER
- 1355666 KB
- ·PTN04050C
- TI
- 12W 3.3/5V 输入宽幅调节输出升压转换器
- 1335296 KB
PTN78060A Relative Products
PTN78020WAZT
REG SW WIDE-VIN 6A ADJ HORZ SMD

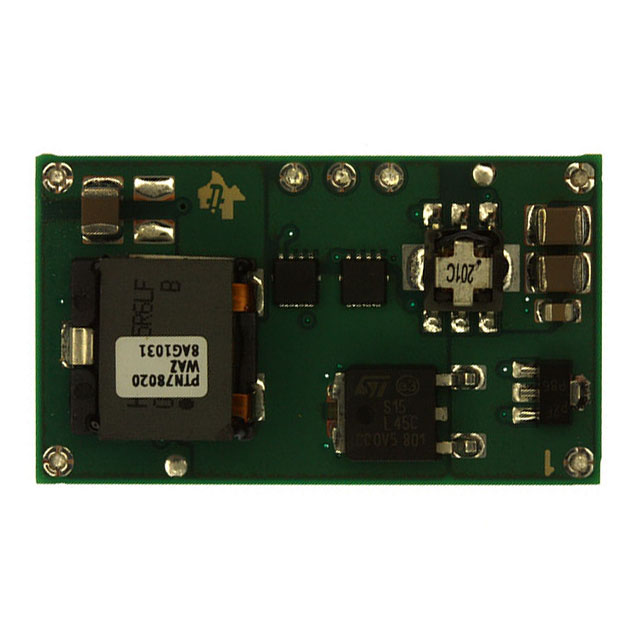

PTN78020WAZ
REG SW 2.5-12.6V 6A SMD
PTN78020WAST
REG SW WIDE-VIN 6A ADJ HORZ SMD

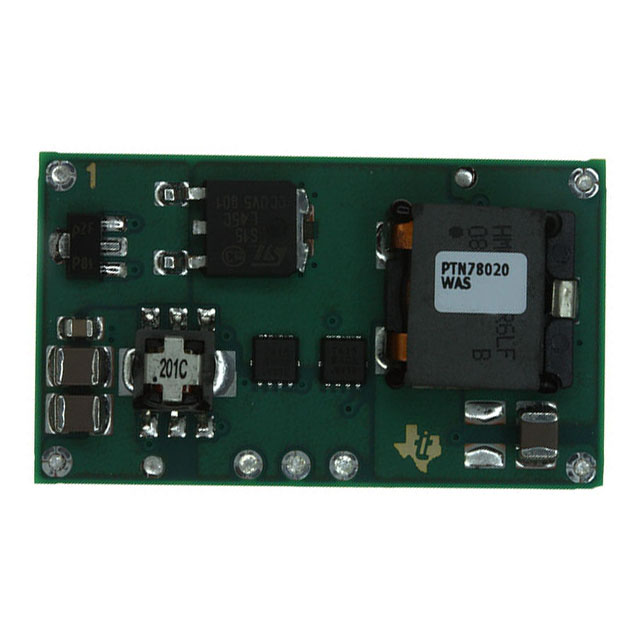

PTN78020WAS
REG SW 2.5-12.6V 6A SMD

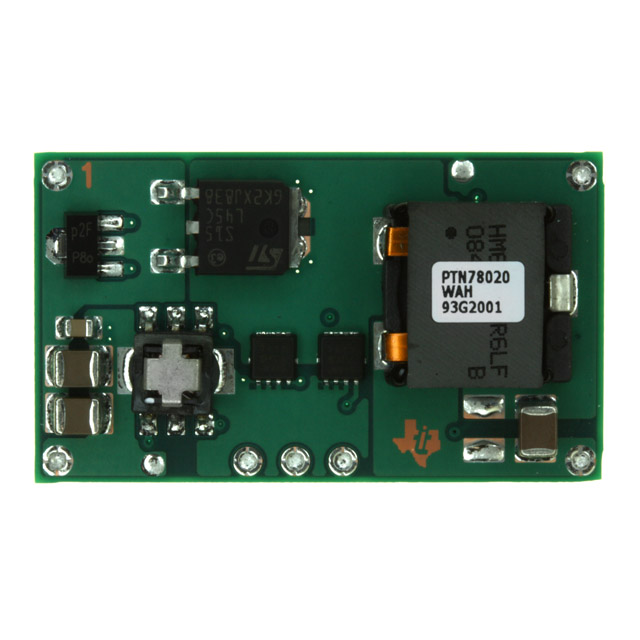

PTN78020WAH
