Purchase PTN78060AAST, In-stock PTN78060AAST From SeekIC.

MFG:Texas Instruments  Category:Power Supplies

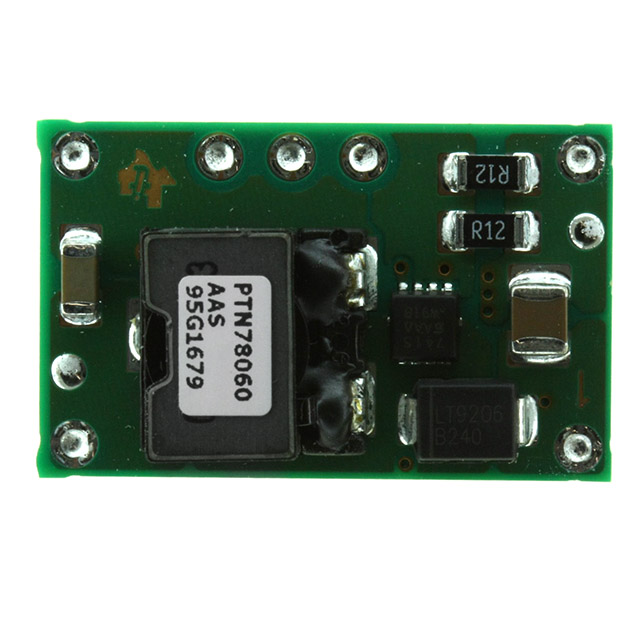

PTN78060AAST Product Image

PTN Series Datasheet download

Five Points

Part Number: PTN78060AAST

Category: Power Supplies

MFG: Texas Instruments





Descriptions: REG SW WIDE-VIN 15W ADJ HORZ SMD

Price Break

250

Unit Price

17.53124

Extended Price

4382.81

(All prices are in USD) Prices for reference only
Urgent Purchase

PTN78060AAST General Description

REG SW WIDE-VIN 15W ADJ HORZ SMD

PTN78060AAST Parameters

Technical/Catalog InformationPTN78060AAST
VendorTexas Instruments
CategoryPower Supplies
Voltage - Input9 ~ 28.7VDC
Output-15 ~ -3.3VDC
Power (Watts)15W
Number of Outputs1
1st Output-15 ~ 3.3 VDC @ 3A
2nd Output-
3rd Output-
4th Output-
TypeNon-Isolated
Mounting TypeSurface Mount
PackagingTape & Reel (TR)
Package / Case7-DIP MODULE
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PTN78060AAST
PTN78060AAST

PTN78060AAST datasheet

PTN78060AAST
PDF/DataSheet Download

Find PTN78060AAST Suppliers
