PW174KA1203F01

Plug-In AC Adapters 60.0W 12V 5.00A 3-wire input

product image

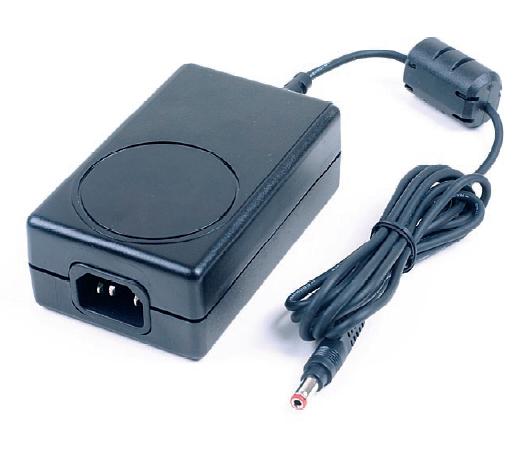

PW174KA1203F01 Picture
See larger image
SeekIC No. : 002765469 Detail

PW174KA1203F01: Plug-In AC Adapters 60.0W 12V 5.00A 3-wire input

PW174KA1203F01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PW174KA1203F01
Mfg:
Ault / SL Power
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Region : Universal Mounting Style : Desktop
Input Voltage Range : 100 VAC to 250 VAC Number of Outputs : 1
Output Power Rating : 60 W Output Voltage (Channel 1) : 12 V
Output Current (Channel 1) : 5 A DC Output Connector : 2.5 mm Barrel Plug
AC Plug included/required : Included Commercial/Medical : Commercial

Description

Efficiency :
Number of Outputs : 1
Commercial/Medical : Commercial
Output Voltage (Channel 1) : 12 V
DC Output Connector : 2.5 mm Barrel Plug
Region : Universal
AC Plug included/required : Included
Mounting Style : Desktop
Output Power Rating : 60 W
Output Current (Channel 1) : 5 A
Input Voltage Range : 100 VAC to 250 VAC


Parameters:

Technical/Catalog InformationPW174KA1203F01
VendorAult Inc.
CategoryPower Supplies and Wall Transformers
TypeSwitching
Mounting TypeDesktop
Number of Outputs1 [Nom]
Primary Output Voltage12VDC
Out #1 Voltage @ Max. Current12VDC @ 5A
Input Voltage Typical100 ~ 250 VAC
Output Power60.0 W [Max]
Output ConnectionConnector (2.5mm I.D. x 5.5mm O.D.)
PolarizationCenter Positive
Efficiency Typical84%
ColorBlack
Height37.000 mm [Typ]
Length107.000 mm [Typ]
Width66.000 mm [Typ]
Cable Length6.000 ft [Typ]
Frequency47.000 Hz [Min]
Frequency63.000 Hz [Max]
StandardCE
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PW174KA1203F01
PW174KA1203F01
271 2474 ND
2712474ND
271-2474
