Product Details

Description



Features:

EPROM Technology for reprogramming
High Speed
  35/45/55 ns (Commercial)
  35/45/55 ns (Military)
Low Power Operation:
  660 mW Commercial
  770 mW Military
Single 5V±10% Power Supply
Windowed devices for reprogramming
Fully TTL Compatible Inputs and Outputs
Standard Pinout (JEDEC Approved):
  24-Pin 600 mil Windowed CERDIP
  24-Pin 600 mil Non-Windowed Plastic DIP


Pinout

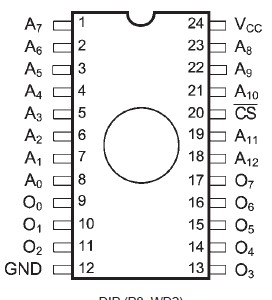

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCC

Power Supply Pin with
Respect to GND

0.5 to +7

V

VTERM

Terminal Voltage with
Respect to GND
(up to 7.0V)

0.5 to VCC +0.5

V

VPP

Program Voltage

13

V




Description

The PY264 is an 8Kx8 CMOS PROM. The device is available in windowed packages which when exposed to UV light, the memory content in the PROM is erased and can be reprogrammed. EPROM technology is used in the memory cells for programming. The EPROM requires a 12.5V for programming. Devices are tested to insure that performance of the device meets the DC and AC specification limits after customer programming. To perform a read operation from the device, CS is LOW. The memory contents in the address established by the Address pins (A0 to A12) will become available on the outputs (O0 to O7).

The PY264 is available in 24-pin 600 mil Ceramic DIPs (Windowed) and Plastic DIPs (Non-Windowed).
