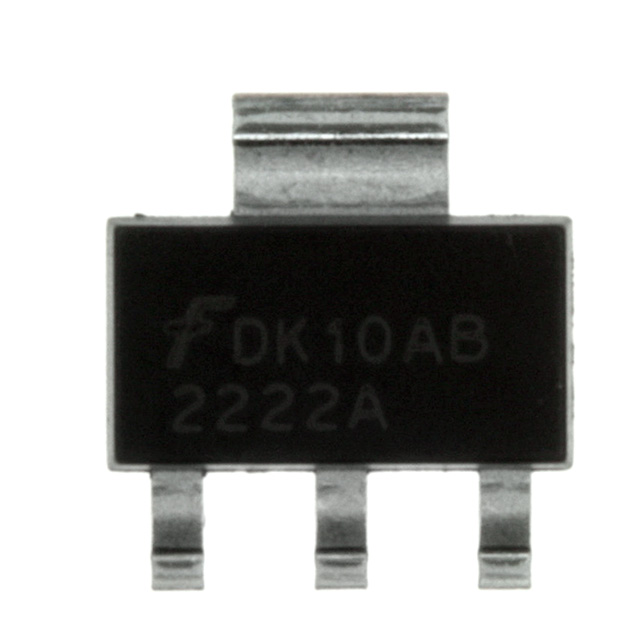

PZT2222AT1 Product Image

PZT Series Datasheet download

Five Points

Part Number: PZT2222AT1



MFG: ON

Package Cooled: SOT-233

D/C: 0425+

Description: This NPN Silicon Epitaxial transistor is designed for use in linear and switching applications. The de...


Urgent Purchase

PZT2222AT1 General Description


This NPN Silicon Epitaxial transistor is designed for use in linear and switching applications. The device is housed in the SOT-223 package which is designed for medium power surface mount applications.

PZT2222AT1 Maximum Ratings

Rating Symbol Value Unit
CollectorEmitter Voltage VCEO 40 Vdc
CollectorBase Voltage VCBO 75 Vdc
EmitterBase Voltage(Open Collector) VEBO 6.0 Vdc
Collector Current IC 600 mAdc
Total Power Dissipation Up to @
TA = 25(1)		 PD 1.5 Watts
Storage Temperature Range Tstg 65 to 150
Junction Temperature TJ 150

PZT2222AT1 Features

• PNP Complement is PZT2907AT1
• The SOT-223 package can be soldered using wave or reflow.
• SOT-223 package ensures level mounting, resulting in improved thermal conduction, and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die.
• Available in 12 mm tape and reel Use
   PZT2222AT1 to order the 7 inch/1000 unit reel.
   Use PZT2222AT3 to order the 13 inch/4000 unit reel.

PZT2222AT1 datasheet

PZT2222AT1
PDF/DataSheet Download

Find PZT2222AT1 Suppliers
