R1180x

Features: • Low Supply Current ..........................................Typ. 1A(Except the current through CE pull-down circuit)• Standby Mode ...................................................Typ. 0.1A• Low Dropout Voltage.........................................Typ. 0.25V (IO...

product image

R1180x Picture
See larger image
SeekIC No. : 004468893 Detail

R1180x: Features: • Low Supply Current ..........................................Typ. 1A(Except the current through CE pull-down circuit)• Standby Mode .............................................

R1180x Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
R1180x
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Supply Current ..........................................Typ. 1A(Except the current through CE pull-down circuit)
• Standby Mode ...................................................Typ. 0.1A
• Low Dropout Voltage.........................................Typ. 0.25V (IOUT=150mA 3.0V Output type)
• Low Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C
• Good Line Regulation .......................................Typ. 0.05%/V
• High Output Voltage Accuracy ..........................±2.0%
• Small Packages ..............................................SOT-23-5 (R1180N), SC-82AB (R1180Q),
                                                                          SON1612-6 (R1180D)
• Output Voltage ..................................................1.2V to 3.6V
• Built-in Fold Back Protection Circuit .................Typ. 40mA (Current at short mode)
• Ceramic capacitors are recommended to be used with this IC 0.1F


Application

• Stable voltage reference.
• Power source for electrical appliances such as cameras, VCRs and camcorders.
• Power source for battery-powered equipment.


Pinout

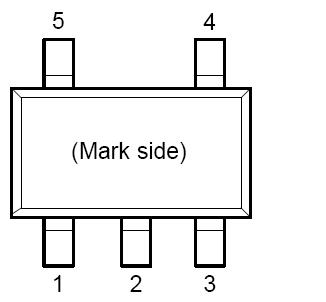

Connection Diagram


Specifications

Symbol Item Rating Unit
VIN Input Voltage 6.5 V
VCE Input Voltage(CE Pin) 6.5 V
VOUT Output Voltage −0.3 to VIN+0.3 V
IOUT Output Current 180 mA
  Power Dissipation (SOT23-5) *1 420
  Power Dissipation (SC82-AB)*1 380
  Power Dissipation (SON1612-6) *1 500
Topt Operating Temperature Range −40 to 85 °C
Tstg Storage Temperature Range −55 to 125 °C



Description

The R1180x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, and low ON-resistance. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit which prevents the destruction by excess current, and so on.

The output voltage of R1180x is fixed with high accuracy. B version has a chip enable pin, therefore ultra-low consumption current standby mode can be realized with the pin.

Since the packages for R1180x is SOT-23-5 (R1180N Series), SC-82AB (R1180Q Series), and SON1612-6 (R1180D Series), therefore high density mounting of the ICs on boards is possible.
