Features:

Input Voltage Range • • • • • • • • • • • • •• • • • • • •• • • • • • •• • • • • • •• •  2.5V to 5.5V
  Built-in Latch-type Protection Function by monitoring duty cycle (Fixed Delay Time TYP. 100ms)
Oscillator Frequency • • • • • • • • • • • • • • • •700kHz(R1280D002A,B)/200kHz(r1280D002C)
Maximum Duty Cycle • • • • • • • • • • • • •• • • TYP. 90%(Only applied to R1280D002B Series)
  High Reference Voltage Accuracy • • • • • •• • • • • • • • •• • • • • • • • •• • • • • • • •  ±1.5%
U.V.L.O. Threshold • • • • • • • • • • • • • • • • • • • •• • • • • TYP. 2.2V (Hysteresis: TYP. 0.1V)
Small Package • • • • • • • • • • • • • • • •• • • •  thin SON-10 (package thickness MAX. 0.9mm)



Application

Constant Voltage Power Source for portable equipment.
Constant Voltage Power Source for LCD and CCD.


Pinout

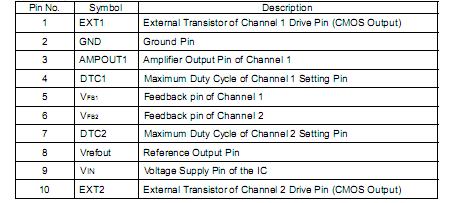

Connection Diagram Connection Diagram


Specifications

Symbol

Item

Rating

Unit

VIN

VIN Pin Voltage

6.5

V

VEXT1,2

VEXT1,2 Pin Output Voltage

-0.3∼VIN+0.3

V

VAMPOUT1

AMPOUT1 Pin Voltage

-0.3∼VIN+0.3

V

VDTC1,2

DTC1,2 Pin Voltage

-0.3∼VIN+0.3

V

Vrefout

VREFOUT Pin Voltage

-0.3∼VIN+0.3

V

VFB1,2

VFB1,VFB2 Pin Voltage

-0.3∼VIN+0.3

V

IEXT1,2

EXT1,2 Pin Output Current

±50

mA

PD

Power Dissipation

250

mW

Topt

Operating Temperature Range

-40 to +85

°C

Tstg

Storage Temperature Range

-55 to +125

°C
