R1LV1616R

Features: • Single 2.7-3.6V power supply• Small stand-by current:2µA (3.0V, typ.)• Data retention supply voltage =2.0V• No clocks, No refresh• All inputs and outputs are TTL compatible• Easy memory expansion by CS1#, CS2, LB# and UB#• Common Data I/O...

product image

R1LV1616R Picture
See larger image
SeekIC No. : 004468953 Detail

R1LV1616R: Features: • Single 2.7-3.6V power supply• Small stand-by current:2µA (3.0V, typ.)• Data retention supply voltage =2.0V• No clocks, No refresh• All inputs and outp...

R1LV1616R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
R1LV1616R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 2.7-3.6V power supply
• Small stand-by current:2µA (3.0V, typ.)
• Data retention supply voltage =2.0V
• No clocks, No refresh
• All inputs and outputs are TTL compatible
• Easy memory expansion by CS1#, CS2, LB# and UB#
• Common Data I/O
• Three-state outputs: OR-tie capability
• OE# prevents data contention on the I/O bus
• Process technology: 0.15um CMOS

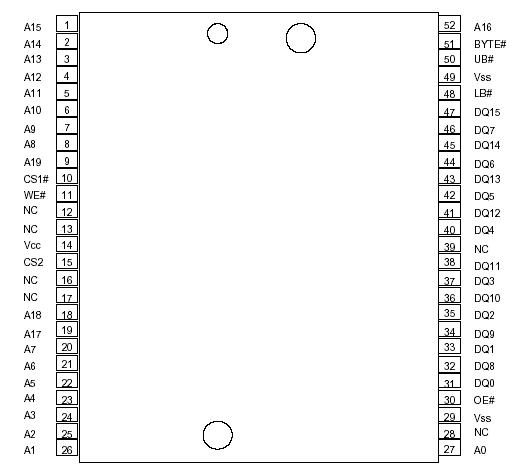

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Power supply voltage relative to Vss Vcc -0.5 to +4.6 V
Terminal voltage on any pin relation toVss PT -0.5*1 to Vcc+0.3*2 V
Power dissipation VT 0.7 W
Operation temperature Topr R ver. 0 to +70 °C
W ver. -20 to +85
I ver. -40 to +85
Storage temperature Tstg -65 to +150 °C
Storage temperature range under bias Tbias R ver. 0 to +70 °C
W ver. -20 to +85
I ver. -40 to +85
Note 1. -2.0V in case of AC (Pulse width 30ns)
         2. Maximum voltage is +4.6V


Description

The R1LV1616R Series is a family of low voltage 16-Mbit static RAMs organized as 1048576-words by 16-bit, fabricated by Renesas's high-performance 0.15um CMOS and TFT technologies.

The R1LV1616R Series is suitable for memory applications where a simple interfacing , battery operating and battery backup are the important design objectives.

The R1LV1616R Series is packaged in a 52pin micro thin small outline mount device[µTSOP / 10.79mm x 10.49mm with the pin-pitch of 0.4mm] or a 48balls fine pitch ball grid array [f-BGA / 7.5mmx8.5mm with the ball-pitch of 0.75mm and 6x8 array] . It gives the best solution for a compaction of mounting area as well as flexibility of wiring pattern of printed circuit boards.
