Features:

· Ultra Low Standby Current .................................................................. 10µA TYP. with only VR6 is enabled at no load
· High Accuracy Output Voltage and Detector Threshold ...................... ±2.0% except programmable VRs.
· Output Voltage and Detector Threshold ............................................... Stepwise setting with a step of 0.1V is possible except programmable VRs.
· Low Temperature-Drift-Coefficients of Output Voltage and
    Detector Threshold ............................................................................... TYP. 100ppm/°C
· Low Dropout Voltage ........................................................................... 150mV at 120mA for VR1
    150mV at 80mA for VR2
· High Ripple Rejection .......................................................................... 65dB at 1kHz for VR1, VR2 and VR5
    60dB at 1kHz for VR6 and VR7
· 3-wire serial interface........................................................................... Shut-down for each of regulators, except VR6,
    detectors and drivers.
    Adjusting output voltage for VR3/4 by 8 bit.
· Battery voltage monitor........................................................................ Analog output for monitoring battery voltage
· Package................................................................................................. LQFP 32pin with 0.5mm lead pitch


Application

·Portable Phones such as GSM, PDC and CDMA as well as other analog phones.
·Power supply for battery-powered appliances.




Pinout

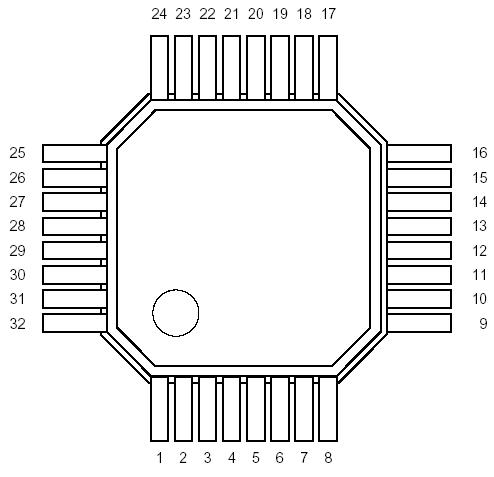

Connection Diagram


Specifications

Symbol Item Conditions
Ratings
Unit
VDD Supply Voltage
6.5
V
VIN Input Voltage CSB, SCK, DATA, CSW1/2/4, TONE
-0.3 to VDD+0.3
V
IOUT1
IOUT2
IOUT3
IOUT4
IOUT5
IOUT7
IOUT8
IOUTP1
IOUTP2
IOUTP3		 Output Current for VR1
Output Current for VR2
Output Current for VR3
Output Current for VR4
Output Current for VR5
Output Current for VR7
Output Current for VR8
Output Current for PO1
Output Current for PO2
Output Current for PO3		 ROUT1
ROUT2
ROUT3
ROUT4
ROUT5
ROUT7
ROUT8
POUT1
POUT2
POUT3
120
80
20
20
50
60
150
10
40
100
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
PD Power Dissipation Mounted on a substrate Topt=+25°C
1000
mW
In the open air Topt=+25°C
500
mW
Topt
Tstg
Tsolder		 Operating Temperature
Storage Temperature
Soldering Temperature
-40 to +85
-55 to +125
260°C 10sec
°C
°C



Description

The R5310L Series are Multi LDO regulators for power management of cellular phones. All of regulators are low noise and extremely low quiescent current by CMOS process. Each of these ICs consists of eight LDOs, voltage detectors, battery monitor, three LED drivers, and a ringer driver. Each of them can be controlled by CPU via 3-wire serial interface. These ICs make it possible to integrate almost power management and analog drivers in cellular-phone systems. The output voltage of two regulators are externally programmable, and other regulators are able to set different output voltage independently by laser trim as well as detector thresholds.

A tiny 32-pin LQFP, 0.5mm lead pitch, is available.
