Product Details

Description



Application

Electronic household appliances, office equipment, audio equipment, consumer products, automotive, etc.

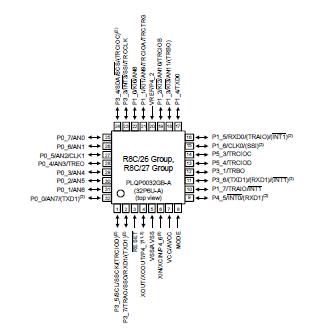

Pinout

Connection Diagram


Specifications

Symbol

Parameter

 Condition Rated Value Unit
VCC/AVCC Supply voltage −0.3 to 6.5 V
VI Input voltage −0.3 to VCC + 0.3 V
VO Output voltage −0.3 to VCC + 0.3 V
Pd Power dissipation Topr = 25°C 500 mW
Topr Operating ambient temperature −20 to 85 (N version) /
−40 to 85 (D version)		 °C
Tstg Storage temperature −65 to 150 °C



Description

These MCUs of R5F21262SNFP are fabricated using a high-performance silicon gate CMOS process, embedding the R8C/Tiny Series CPU core, and are packaged in a 32-pin molded-plastic LQFP. It implements sophisticated instructions for a high level of instruction efficiency. With 1 Mbyte of address space, they are capable of executing instructions at high speed. Furthermore, the R8C/27 Group has on-chip data flash (1 KB × 2 blocks).

The difference between the R8C/26 Group and R8C/27 Group is only the presence or absence of data flash. Their peripheral functions are the same.
