RBO08-40T

Battery Management Batt & Overvolt Prot

product image

RBO08-40T Picture
See larger image
SeekIC No. : 00486766 Detail

RBO08-40T: Battery Management Batt & Overvolt Prot

RBO08-40T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RBO08-40T
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Package / Case : TO-220 Packaging : Tube

Description

Battery Type :
Output Voltage :
Output Current :
Operating Supply Voltage :
Maximum Operating Temperature :
Minimum Operating Temperature :
Packaging : Tube
Package / Case : TO-220


Features:

·8A DIODE TOGUARD AGAINST BATTERY REVERSAL.
·NEGATIVEOVERVOLTAGEPROTECTION BY CLAMPING.
·COMPLIANT WITH ISO/DTR 7637 STANDARD FORPULSES 1, 2, 3a and 3b.
·SUITABLE FOR AUTOPROTECTED ALTERNATORENVIRONMENT.
·BREAKDOWN VOLTAGE : 24 V min.
·CLAMPINGVOLTAGE : ± 40 V max.
·MONOLITHIC STRUCTURE FOR GREATER RELIABILITY.

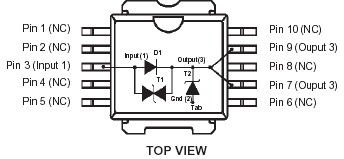

Pinout

Connection Diagram


Specifications

Symbol Parameter
Value
Unit

IFSM

 Non repetitive surge peak forward current
(Diode D1)		 tp = 10ms
80
A

IF

 DC forward current (Diode D1) Tc = 75°C
8
A

PPP

 Peak pulse power between Input and Output
(Transil T1) see note 1 Tj initial = 25°C		 10/1000s
600
W

PPP

Peak pulse power between Pins 3 and 2 (10/1000s)
1500
w

Tstg
Tj

 Storage temperature range
Maximum junction temperature
40 to + 150
150
°C

TL

 Maximum lead temperature for soldering during 10 s
at 4.5mm from case for TO220AB
260
°C



Description

Designed to protect against battery reversal and overvoltagesin automotiveapplications, this RBO08-40T monolithiccomponent offers multiple functions in the same package : D1 : reversed battery protection T1 : clamping against negative overvoltages T2 : Transil function for overvoltage protection.




Parameters:

Technical/Catalog InformationRBO08-40T
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Battery TypeAll Battery Types
FunctionOver/Under Voltage Protection
Package / CaseTO-220-3 (Straight Leads)
PackagingTube
Operating Temperature*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names RBO08 40T
RBO0840T
