RBO40-40T

TVS Diode Arrays Batt & Overvolt Prot

product image

RBO40-40T Picture
See larger image
SeekIC No. : 00225955 Detail

RBO40-40T: TVS Diode Arrays Batt & Overvolt Prot

RBO40-40T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RBO40-40T
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Channels : 2 Channels Operating Voltage : 40 V
Package / Case : TO-220 Capacitance : 3000 pF
Series : RBO40-40G/T Packaging : Tube

Description

Polarity :
Clamping Voltage :
Breakdown Voltage :
Minimum Operating Temperature :
Maximum Operating Temperature :
Channels : 2 Channels
Packaging : Tube
Operating Voltage : 40 V
Capacitance : 3000 pF
Series : RBO40-40G/T
Package / Case : TO-220


Features:

`PROTECTIONAGAINST"LOADDUMP" PULSE
`40A DIODE TO GUARD AGAINST BATTERY REVERSAL
`MONOLITHIC STRUCTURE FOR GREATER RELIABILITY
`BREAKDOWN VOLTAGE : 24 V min.
`CLAMPINGVOLTAGE : ± 40 V max.
`COMPLIANT WITH ISO / DTR 7637


Pinout

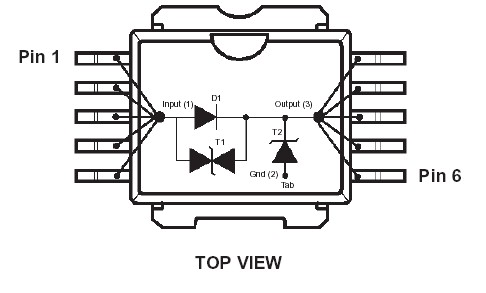

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
IFSM
Non repetitive surge peak forward current (Diode D1) tp = 10 s
120
A
IF DC forward current (Diode D1) Tc = 75°C
40
A
VPP Peak load dump voltage (see note 1and 2)
5 pulses (1 minute between each pulse)
80
V
PPP Peak pulse power between Input and Output
(Transil T1) Tj initial = 25°C		 10/1000 s
1500
W
Tstg Tj Storage temperature range
Maximum junction temperature
- 40 to + 150
150
°C
TL Maximum lead temperature for soldering during 10 s
at 4.5mm from case for TO220AB
260
°C
Note 1 : for a surge greater than the maximum value, the device will fail in short-circuit.
Note 2 : see Load Dump curves.
TM : PowerSO-10,TRANSIL and ASD are trademarks of SGS-THOMSON Microelectronics.


Description

Designed to protect against battery reversal and load dump overvoltagesin automotiveapplications, this RBO40-40T monolithic component offers multiple functionsin the same package : D1 : reversed battery protection T1 : clamping against negative overvoltages T2 : Transil function against "load dump" effect.




Parameters:

Technical/Catalog InformationRBO40-40T
VendorSTMicroelectronics
CategoryCircuit Protection
Package / CaseTO-220-3 (Straight Leads)
PackagingTube
TechnologyMixed Technology
ApplicationsOverload Protection
Number of Circuits1 - Single
Voltage - Working24V
Voltage - Clamping&plusmn40V
Power (Watts)1500W
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names RBO40 40T
RBO4040T
497 2550 5 ND
49725505ND
497-2550-5
