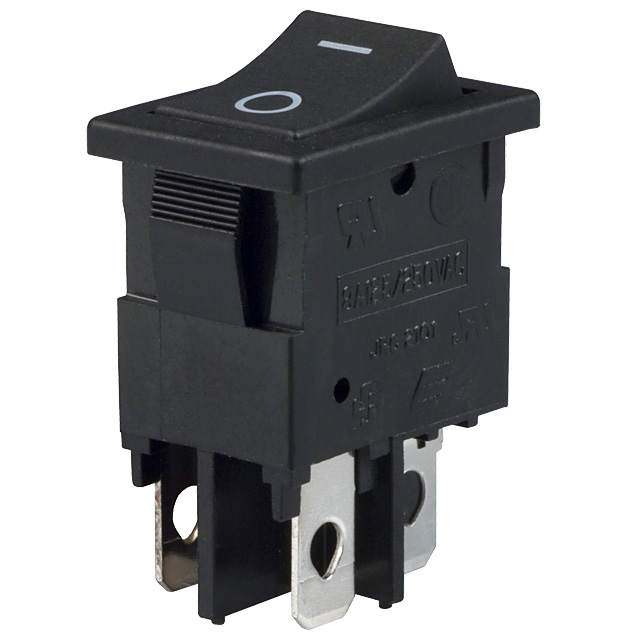

See larger image

SeekIC No. : 004169693 Detail

RC1083BBLKBLKLF: SWITCH ROCKER DPST 8A 125V

RC1083BBLKBLKLF Data Sheet

US $ .88~.88 / Piece | Get Latest Price

Part Number:: RC1083BBLKBLKLF
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~100

Unit Price
$.88

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2026/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

RC100 evaluate
Digital Multimeters TWEEZER STYLE PASSIV COMPONENT R/C SMD
RC1005 evaluate
DescriptionThe RC1005 is designed as one kind of thick film chip resistor device that has three po...
RC101C evaluate
Features: ` On-chip bias resistances (R1=47k, R2=47k).` Compact package (CP).Specifications P...

Product Details

Quick Details

Series:	RC1083	Manufacturer:	E-Switch
Circuit:	DPST	Data Rate :	3000 Mbps
Switch Function:	On-Off	Current Rating:	8A (AC)
Voltage Rating - AC:	125V	Voltage Rating - DC:	-
Actuator Style:	Concave (Curved)	Color - Actuator/Cap:	Black
Actuator Marking:	▄▄ on End	Illumination Type, Color:	-
Illumination Voltage (Nominal):	-	Mounting Type:	Panel Mount, Snap-In
Termination Style:	Quick Connect - 0.187" (4.7mm)	Ingress Protection:	-
Features:	-	Panel Cutout Dimensions:	Rectangular - 19.30mm x 13.00mm

Description

Switch Function: On-Off
Voltage Rating - AC: 125V
Voltage Rating - DC: -
Actuator Style: Concave (Curved)
Color - Actuator/Cap: Black
Illumination Type, Color: -
Illumination Voltage (Nominal): -
Mounting Type: Panel Mount, Snap-In
Termination Style: Quick Connect - 0.187" (4.7mm)
Features: -
Packaging: Bulk
Ingress Protection: -
Circuit: DPST
Manufacturer: E-Switch
Series: RC1083
Current Rating: 8A (AC)
Panel Cutout Dimensions: Rectangular - 19.30mm x 13.00mm
Actuator Marking: ▄▄ on End

Parameters:

Technical/Catalog Information	RC1083BBLKBLKLF
Vendor	E-Switch
Category	Switches
Mounting Type	Panel Mount, Snap-In
Circuit	DPST
Switch Function	On-Off
Contact Rating @ Voltage	12A @ 125VAC
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Termination Style	Quick Connect - .187" (4.7mm)
Panel Cutout Dimensions	19.30mm x 13.00mm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RC1083BBLKBLKLF RC1083BBLKBLKLF
