Part Number: RC2211
Package Cooled: DIP
Description: The RC2211 is a monolithic phase-locked loop (PLL) system especially designed for data communications....
- Table of contents:
RC2211
-
Suppliers
DataSheet
General Description
RC2211 General Description
The RC2211 is a monolithic phase-locked loop (PLL) system especially designed for data communications. It is particularly well-suited for FSK modem applications, and operates over a wide frequency range of 0.01 Hz to 300 kHz. It can accommodate analog signals between 2 mV and 3V, and can interface with conventional DTL, TTL and ECL logic families. The circuit consists of a basic PLL for tracking an input signal frequency within the passband, a quadrature phase detector which provides carrier detection, and an FSK voltage comparator which provides FSK demodulation. External components are used to indepen- dently set carrier frequency, bandwidth and output delay.
RC2211 Maximum Ratings
| Parameter | Min | Max | Unit | |
| Supply Voltage | -20 | +20 | V | |
| Input Signal Level | 3 | VRMS | ||
| Storage Temperature Range | -65 | +150 | ||
| Operating Temperature Range | RM2211D | -55 | +125 | |
| RV2211N | -25 | +85 | ||
| RC2211N | -0 | +70 | ||
| Junction Temperature | PDIP | +125 | ||
| CerDIP | +175 | |||
| Lead Soldering Temperature (60 sec.) | +300 | |||
| Max. PD TA<50 | PDIP | 468 | mW | |
| CerDIP | 1042 | mW | ||
RC2211 Features
· Wide frequency range - 0.01 Hz to 300 kHz
· Wide supply voltage range - 4.5V to 20V
· DTL/TTL/ECL logic compatibility
· FSK demodulation with carrier-detector
· Wide dynamic range - 2 mV to 3 VRMS
· Adjustable tracking range - ±1% to ±80%
· Excellent temperature stability - 20 ppm/°C typical
· Wide supply voltage range - 4.5V to 20V
· DTL/TTL/ECL logic compatibility
· FSK demodulation with carrier-detector
· Wide dynamic range - 2 mV to 3 VRMS
· Adjustable tracking range - ±1% to ±80%
· Excellent temperature stability - 20 ppm/°C typical
RC2211 Typical Application
· FSK demodulation
· Data synchronization
· Tone decoding
· FM detection
· Carrier detection
· Data synchronization
· Tone decoding
· FM detection
· Carrier detection

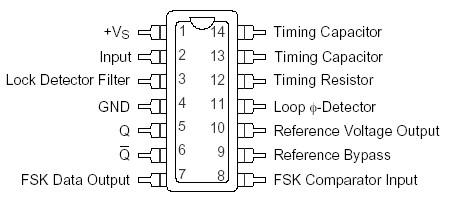

RC2211 Connection Diagram
RC2211
PDF/DataSheet Download
- Datasheet: RC2211
- File Size: 138962 KB
- Manufacturer: ETC [ETC]
- Click here to Download
