MFG:TI Package Cooled:DIP D/C:N/A
MFG: TI
Package Cooled: DIP
D/C: N/A
Description: The RC4136, RM4136, and RV4136 are quad general-purpose operational amplifiers with each amplifier ele...
The RC4136, RM4136, and RV4136 are quad general-purpose operational amplifiers with each amplifier electrically similar to the mA741 except that offset null capability is not provided.
The high common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage-follower applications. The devices are short circuit protected and the internal frequency compensation ensures stability without external components.
The RC4136 is characterized for operation from 0 to 70, the RM4136 is characterized for operation over the full military temperature range of 55 to 125, and the RV4136 is characterized for operation from 40 to 85.
| RC4136 | RM4136 | RV4136 | UNIT | ||
| Supply voltage VCC+ (see Note 1) | 18 | 22 | 18 | V | |
| Supply voltage VCC (see Note 1) | 18 | -22 | -18 | V | |
| Differential input voltage (see Note 2) | ±30 | ±30 | ±30 | V | |
| Input voltage (any input, see Notes 1 and 3) | ±15 | ±15 | ±15 | V | |
| Duration of output short circuit to ground, one amplifier at a time (see Note 4) | unlimited | unlimited | unlimited | ||
| Continuous total dissipation | See Dissipation Rating Table | ||||
| Operating free-air temperature range | 0 to 70 | 55 to 125 | 40 to 85 | ||
| Storage temperature range | 65 to 150 | 65 to 150 | 65 to 150 | ||
| Case temperature for 60 seconds | FK package | - | 260 | - | |
| Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds | J or W package | - | 300 | - | |
| Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds | D or N package | 260 | - | 260 | |
RC4136
PDF/DataSheet Download
The RC4097 is a micropower device that can be used to improve the performance of a wide range of precision operational amplifier applications. Essentially, a low-power idling current, low IB version of the popular OP-07 industry type, the RC4097 can replace ...
The RC4077 is an advanced, ultra-high performance precision bipolar operational amplifier. its high precision performance results from two innovative and unconventional manufacturin steps, plus careful circuit layout and design. Thin-film resistor technology...

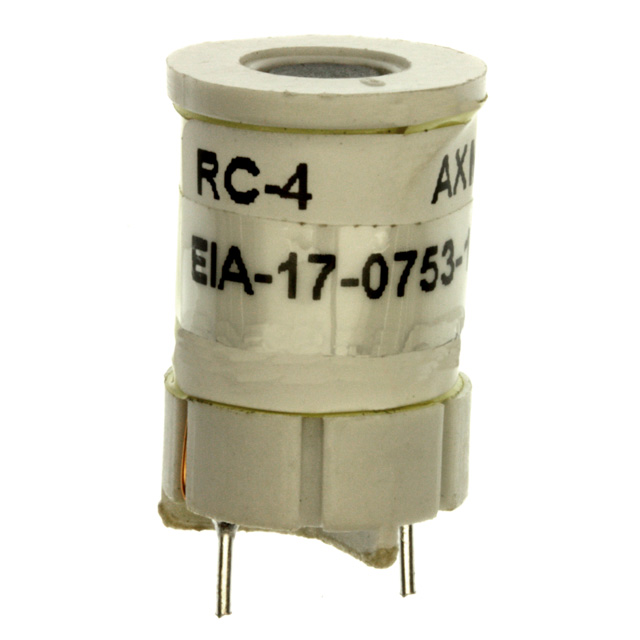

INDUCTOR 1.5mH .500A ROD CORE
