RC7144

Features: • Employs Fairchild's proprietary Spread Spectrum Technology• Reduces measured EMI by as much as 10dB• Supports up to 150MHz ¥ I2C programmable• Two copies of CPU clock with one free running• One copy 24MHz clock• One copy 48MHz clock• One co...

product image

RC7144 Picture
See larger image
SeekIC No. : 004472650 Detail

RC7144: Features: • Employs Fairchild's proprietary Spread Spectrum Technology• Reduces measured EMI by as much as 10dB• Supports up to 150MHz ¥ I2C programmable• Two copies of C...

RC7144 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RC7144
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Employs Fairchild's proprietary Spread Spectrum
  Technology
• Reduces measured EMI by as much as 10dB
• Supports up to 150MHz
  ¥ I2C programmable
• Two copies of CPU clock with one free running
• One copy 24MHz clock
• One copy 48MHz clock
• One copy IOAPIC
• Two copy REF 14.318MHz clock (3.3V)
• Six copies PCI clock
• Thirteen copies of SDRAM clock with one free running
• PCI/CPU stop capability




Pinout

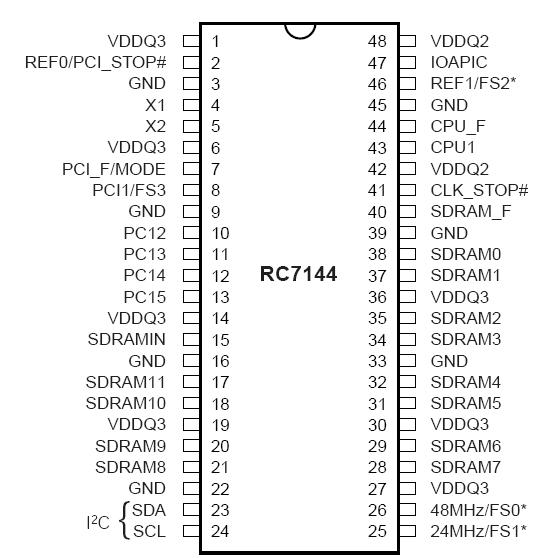

Connection Diagram


Specifications

Symbol Parameter Ratings Units
VDD, VIN Voltage on any pin with respect to ground -0.5 to 7.0 V
TSTG Storage Temperature -65 to 150
TB Ambient Temperature -55 to 125
TA Operating Temperature 0 to 70
ESDPROT Input ESD Protection 2 (min) KV



Description

The RC7144 is a clock synthesizer for motherboard applications. It meets the requirements for the 133MHz 13x/zx chipset. The clock frequencies can be set with the 4 select pins or can be set via the I2C interface.
