Part Number: RD74LVC14B
Description: The RD74LVC14B has six Schmitt trigger inverters in a 14-pin package. Low voltage and high-speed opera...
- Table of contents:
RD74LVC14B
-
Suppliers
DataSheet
General Description
RD74LVC14B General Description
The RD74LVC14B has six Schmitt trigger inverters in a 14-pin package. Low voltage and high-speed operation is suitable at the battery drive product (note type personal computer) and low power consumption extends the life of a battery for long time operation.
RD74LVC14B Maximum Ratings
| Item | Symbol | Ratings | Unit | Test Conditions |
| Supply voltage | VCC | 0.5 to 7.0 | V | |
| Input diode current | IIK | -50 | mA | VI = 0.5 V |
| Input voltage | VI | 0.5 to 7.0 | V | |
| Output diode current | IOK | -50 | mA | VO = 0.5 V |
| 50 | mA | VO = VCC+0.5 V | ||
| Output voltage | VO | 0.5 to VCC+0.5 | V | |
| Output current | IO | ±50 | mA | |
| VCC, GND current / pin | ICC or IGND | 100 | mA | |
| Storage temperature | Tstg | 65 to +150 | °C |
which may be realized at the same time.
RD74LVC14B Features
• VCC = 2.0 V to 5.5 V
• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
• Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
• Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
• High output current
±4 mA (@VCC = 1.65 V)
±8 mA (@VCC = 2.3 V)
±12 mA (@VCC = 2.7 V)
±24 mA (@VCC = 3.0 V to 5.5 V)
• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
• Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
• Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
• High output current
±4 mA (@VCC = 1.65 V)
±8 mA (@VCC = 2.3 V)
±12 mA (@VCC = 2.7 V)
±24 mA (@VCC = 3.0 V to 5.5 V)

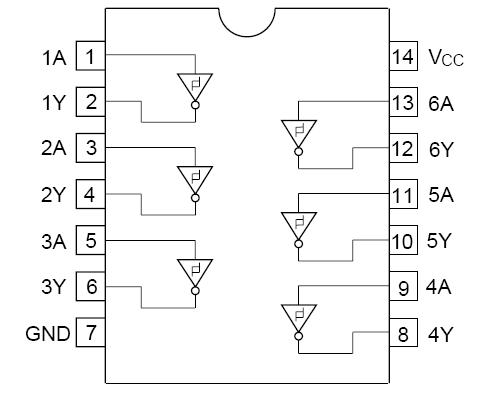

RD74LVC14B Connection Diagram
