Purchase REF02AJ_883C, In-stock REF02AJ_883C From SeekIC.
Part Number: REF02AJ_883C
Description: The REF02 precision voltage reference provides a stable 5 V output that can be adjusted over a ±6% ran...
- Table of contents:
REF02AJ_883C
-
Suppliers
DataSheet
General Description
REF02AJ_883C General Description
The REF02 precision voltage reference provides a stable 5 V output that can be adjusted over a ±6% range with minimal effect on temperature stability. Single-supply operation over an input voltage range of 7 V to 40 V, low current drain of 1 mA, and exc ellent temperature stability are achieved with an improved band gap design. Low cost, low noise, and low power make the REF02 an excellent choice whenever a stable voltage reference is required. Applications include DACs and ADCs, portable instrumentation, and digital voltmeters. The versatility of the REF02 is enhanced by its use as a monolithic temperature transducer. For new designs, refer to ADR02.
REF02AJ_883C Maximum Ratings
| Parameter | Symbol | Conditions | REF02C Min Typ Max |
REF02D Min Typ Max |
Unit |
| Output Voltage Change with Temperature 1, 2 |
VOT | 0.14 0.45 | 0.49 1.7 | % | |
|
Output Voltage 3 |
TCVO | 20 65 | 70 250 | ppm/ | |
| Change in VO Temperature Coefficient with Output Adjustment |
RP = 10 k | 0.7 | 0.7 | ppm/% | |
| Line Regulation 4 | VIN= 8 V to 40 V | 0.011 0.018 | 0.012 0.05 | %/V | |
| Load Regulation 4 | IL= 0 mA to 5 mA | 0.008 0.018 | 0.016 0.05 | %/mA | |
| Temperature Voltage Output Temperature Coefficient 5 |
TCVT | ||||
| Z Package and 883C Product | 2.10 | 2.10 | mV/ | ||
| P, S, and "J" Packages | 1.96 | 1.96 | mV/ |
REF02AJ_883C Features
`5 V output, ±0.3% max
`Temperature voltage output, 1.96 mV/
`Adjustment range, ±3% min
`Excellent temperature stability, 8.5 ppm/ max
`Low noise, 15 V p-p max
`Low supply current, 1.4 mA max
`Wide input voltage range, 7 V to 40 V
`High load-driving capability, 10 mA
`No external components
`Short-circuit proof

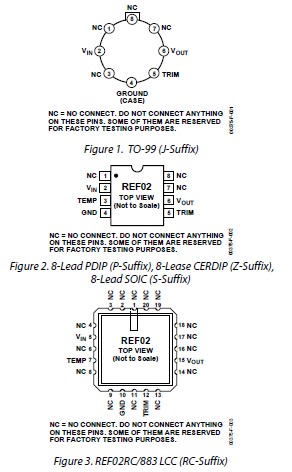

REF02AJ_883C Connection Diagram
REF02AJ/883C
PDF/DataSheet Download
- Datasheet: REF02AJ/883C
- File Size: 469710 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
