REF19x Series

Features: `Initial Accuracy: ±2 mV max`Temperature Coefficient: 5 ppm/ max`Low Supply Current: 45 A max`Sleep Mode: 15 A max`Low Dropout Voltage`Load Regulation: 4 ppm/mA`Line Regulation: 4 ppm/V`High Output Current: 30 mA`Short Circuit ProtectionApplication·Portable Instrumentation·A-to-D and D-t...

product image

REF19x Series Picture
See larger image
SeekIC No. : 004475966 Detail

REF19x Series: Features: `Initial Accuracy: ±2 mV max`Temperature Coefficient: 5 ppm/ max`Low Supply Current: 45 A max`Sleep Mode: 15 A max`Low Dropout Voltage`Load Regulation: 4 ppm/mA`Line Regulation: 4 ppm/V`Hi...

REF19x Series Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
REF19x Series
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Initial Accuracy: ±2 mV max
`Temperature Coefficient: 5 ppm/ max
`Low Supply Current: 45 A max
`Sleep Mode: 15 A max
`Low Dropout Voltage
`Load Regulation: 4 ppm/mA
`Line Regulation: 4 ppm/V
`High Output Current: 30 mA
`Short Circuit Protection


Application

·Portable Instrumentation
·A-to-D and D-to-A Converters
·Smart Sensors
·Solar Powered Applications
·Loop Current Powered Instrumentations


Pinout

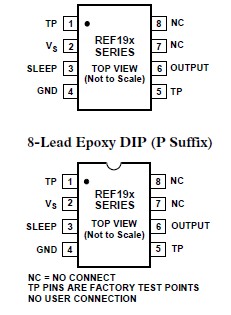

Connection Diagram


Specifications

Supply Voltage 0.3 V, +18 V
Output to GND 0.3 V, VS + 0.3 V
Output to GND Short-Circuit Duration Indefinite
Storage Temperature Range P, S Package 65 to +150
Operating Temperature Range REF19x 40 to +85
Junction Temperature Range P, S Package 65 to +150
Lead Temperature Range (Soldering 60 sec) +300



Description

REF19x series precision bandgap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable thin film resistors to achieve a very low temperature coefficient and a high initial accuracy.

The REF19x series are micropower, Low Dropout Voltage (LDV) devices providing a stable output voltage from supplies as low as 100 mV above the output voltage and consuming less than 45 mA of supply current. In sleep mode, which is enabled by applying a low TTL or CMOS level to the sleep pin, the outpu t is turned off and supply current is further reduced to less than 15 A.

The REF19x series references are specified over the extended industrial temperature range (40 to +85) with typical performance specifications over 40 to +125 for applications such as automotive.

All electrical grades of REF19x Series are available in 8-Lead SOIC; the PDIP and TSSOP are only available in the lowest electrical grade. Products are also available in die form.
