REJ03B0217-0010

Features: The R8C/2H Group and R8C/2J Group of single-chip MCUs incorporate the R8C/Tiny Series CPU core, employing sophisticated instructions for a high level of efficiency. With 1 Mbyte of address space and is capable of executing instructions at high speed. In addition, the CPU core boasts a mu...

product image

REJ03B0217-0010 Picture
See larger image
SeekIC No. : 004476042 Detail

REJ03B0217-0010: Features: The R8C/2H Group and R8C/2J Group of single-chip MCUs incorporate the R8C/Tiny Series CPU core, employing sophisticated instructions for a high level of efficiency. With 1 Mbyte of address...

REJ03B0217-0010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
REJ03B0217-0010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The R8C/2H Group and R8C/2J Group of single-chip MCUs incorporate the R8C/Tiny Series CPU core, employing sophisticated instructions for a high level of efficiency. With 1 Mbyte of address space and is capable of executing instructions at high speed. In addition, the CPU core boasts a multiplier for high-speed operation processing.

Power consumption is low, and the supported operating modes allow additional power control. These MCUs also
use an anti-noise configuration to reduce emissions of electromagnetic noise and are designed to withstand EMI.
Integration of many peripheral functions, including multifunction timer and serial interface, reduces the number of
system components.




Application

Electric power meters, electronic household appliances, office equipment, audio equipment, consumer equipment, etc.




Pinout

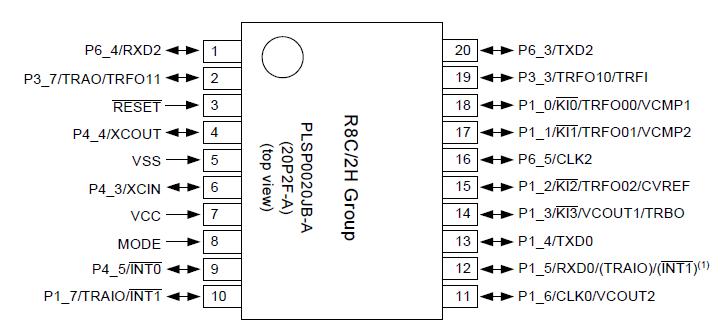

Connection Diagram


Specifications

Symbol

Parameter
Condition
Rated value
Unit
VCC/AVCC
 Supply voltage
-0.3 to 6.5
V
VI
 Input voltage
-0.3 to VCC+0.3
V
VO
 Output voltage
-0.3 to VCC+0.3
V
Pd
 Power dissipation
Topr=25°C
500
mW
Topr
 Operating ambient temperature
-20 to 85 /
-40 to 85 (D version)
°C
Tstg
 Storage temperature
-65 to 150
°C
