Part Number: RF106
Description: The RF106 is a class AB RF power amplifier for 900 MHz ISM band applications. It delivers output power...
- Table of contents:
RF106
-
Suppliers
DataSheet
General Description
RF106 General Description
The RF106 is a class AB RF power amplifier for 900 MHz ISM band applications. It delivers output power proportional to the input signal power.
The RF106 power amplifier, combined with Conexant's RF105 diSSTance™ (digital Spread Spectrum Technology) transceiver, forms a complete system solution for a direct conversion 900 MHz diSSTance radio which is fully compliant with FCC Part 15 regulations in the ISM band.
The RF106 is operational in the 900 MHz ISM band with supply voltage ranging from 2.7V to 5V. It is available in a small 20-pin TSSOP package, shown in Figure 1. Figure 2 shows a block diagram for the RF106.
RF106 Maximum Ratings
| Parameter | Min. | Max. | Unit |
| Supply voltage (Vcc) (note 1) | +5 | V | |
| Input voltage range (note 1) | GND | VCC | V |
| Power dissipation @ high output power mode | 400 | mW | |
| Ambient operating temperature | -10 | +70 | |
| Storage temperature | -40 | +125 |
Notes:1. Voltages are referenced to GND.
RF106 Features
· Class AB-type RF power amplifier
· 100 mW peak envelope output power
· Very fast settling from standby mode to active mode
· Efficient high output power operation
· Very few external components required
· 20-pin TSSOP package
· 100 mW peak envelope output power
· Very fast settling from standby mode to active mode
· Efficient high output power operation
· Very few external components required
· 20-pin TSSOP package
RF106 Typical Application
· diSSTance-technology cordless telephone
· Direct sequence spread spectrum systems
· Frequency hopping spread spectrum systems
· Wireless LANs
· Wireless modems
· Wireless security
· Inventory control systems
· Direct sequence spread spectrum systems
· Frequency hopping spread spectrum systems
· Wireless LANs
· Wireless modems
· Wireless security
· Inventory control systems

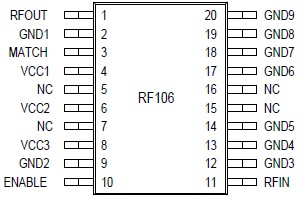

RF106 Connection Diagram
RF106
