RF110 General Description


The RF110 is a three-stage class AB power amplifier for 24002483.5 MHz ISM (Industrial, Scientific, Medical) band applications.

The RF110 power amplifier, combined with Conexant's RF109 transceiver, forms a complete system solution for a direct conversion 2400 MHz radio which is compliant with FCC Part 15 regulations in the ISM band.

The RF110 is operational in the 2400 MHz ISM band with a supply voltage range of 3.04.5V. The RF110's pin assignments and block diagram are shown in Figure 1 and Figure 2, respectively.

RF110 Maximum Ratings

Parameter Min. Max. Unit
Supply voltage (Vcc) (note 1)   +5 V
Input voltage range (note 1) GND VCC V
Power dissipation at high output power mode   700 mW
Ambient operating temperature (Ta) 10 +70 °C
Storage temperature 40 +125 °C
Notes:
1. Voltages are referenced to GND.

RF110 Features

• Class AB type RF power amplifier
• Differential inputs and outputs
• 100 mW peak envelope output power
• Very fast settling from standby mode to active mode
• Efficient high output power operation
• Requires few external components
• 20-pin TSSOP package

RF110 Typical Application

• 2400 MHz cordless telephones
• Direct sequence spread spectrum systems
• Frequency hopping spread spectrum systems
• Wireless LANs
• Wireless modems
• Wireless security
• Inventory control systems

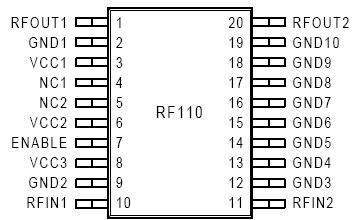

RF110 Connection Diagram

RF110 Connection Diagram
