Features:

• DC to 2000MHz Operation
• Internally matched Input and Output
• 20dB Small Signal Gain
• 3.5dB Noise Figure
• 10mW Linear Output Power
• Single Positive Power Supply

Application

• Broadband, Low Noise Gain Blocks
• IF or RF Buffer Amplifiers
• Driver Stage for Power Amplifiers
• Final PA for Low Power Applications
• Portable Battery Powered Equipment
• Broadband Test Equipment

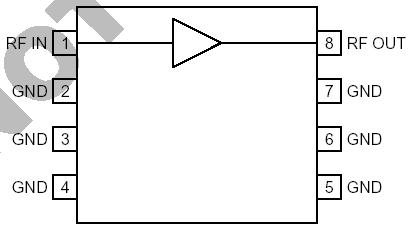

Pinout

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Current Input RF Power Operating Ambient Temperature Storage Temperature	65 +10 -40 to +85 -40 to +150	mA dBm °C °C

Description

The RF2306 is a general purpose, low cost RF amplifier IC. RF2306 is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily-cascadable 50Ω gain block. Applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 2000MHz. RF2306 is self-contained with 50Ω input and output impedances and requires only two external DC biasing elements to operate as specified.
