RF2317

Features: • DC to 3.0GHz Operation• Internally Matched Input and Output• 15dB Small Signal Gain• 4.9dB Noise Figure• +26dBm Output Power• Single 9V to 12V Power SupplyApplication• CATV Distribution Amplifiers• Cable Modems• Broadband Gain Block...

product image

RF2317 Picture
See larger image
SeekIC No. : 004476227 Detail

RF2317: Features: • DC to 3.0GHz Operation• Internally Matched Input and Output• 15dB Small Signal Gain• 4.9dB Noise Figure• +26dBm Output Power• Single 9V to 12V Power S...

RF2317 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2317
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• DC to 3.0GHz Operation
• Internally Matched Input and Output
• 15dB Small Signal Gain
• 4.9dB Noise Figure
• +26dBm Output Power
• Single 9V to 12V Power Supply




Application

• CATV Distribution Amplifiers
• Cable Modems
• Broadband Gain Blocks
• Laser Diode Driver
• Return Channel Amplifier
• Base Stations

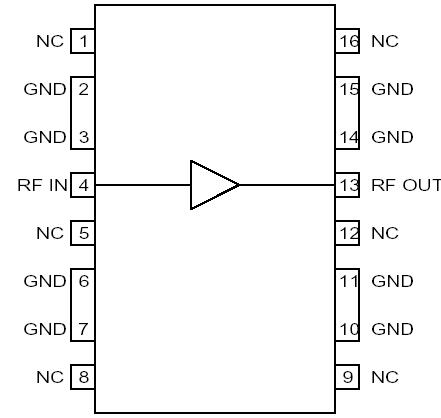

Pinout

Connection Diagram




Specifications

Parameter
Rating
Unit
Device Current

Input RF Power

Output Load VSWR

Ambient Operating Temperature

Storage Temperature
250

+18

20:1

-40 to +85

-40 to +150
mA

dBm


°C

°C


Frequency (MHz) DC to 3000
Gain (dB) 15
NF (dB) 5.3
OP1dB (dBm) 22
IP1dB (dBm) 6
OIP3 (dBm) +38
Vcc (V) 9 to 12
Icc (mA) 180
Package/Size (Dim in mm) CJ2BAT0





Description

The RF2317 is a general purpose, low-cost high-linearity RF amplifier IC. RF2317 is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily cascadable 75Ω gain block. The gain flatness of better than ±0.5dB from 50MHz to 1000MHz, and the high linearity, make this part ideal for cable TV applications. Other applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 3GHz.RF2317 is selfcontained with 75Ω input and output impedances and requires only two external DC biasing elements to operate as specified.
