RF2320

Features: • 5MHz to 2500MHz Operation• Internally Matched Input and Output• 16dB Small Signal Gain• 1.6dB Noise Figure• +22dBm Output Power• Single 6V to 9V Positive Power SupplyApplication• CATV Distribution Amplifiers• Cable Modems• Broadband...

product image

RF2320 Picture
See larger image
SeekIC No. : 004476229 Detail

RF2320: Features: • 5MHz to 2500MHz Operation• Internally Matched Input and Output• 16dB Small Signal Gain• 1.6dB Noise Figure• +22dBm Output Power• Single 6V to 9V Posit...

RF2320 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2320
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 5MHz to 2500MHz Operation
• Internally Matched Input and Output
• 16dB Small Signal Gain
• 1.6dB Noise Figure
• +22dBm Output Power
• Single 6V to 9V Positive Power Supply




Application

• CATV Distribution Amplifiers
• Cable Modems
• Broadband Gain Blocks
• Laser Diode Driver
• Return Channel Amplifier
• Base Stations




Pinout

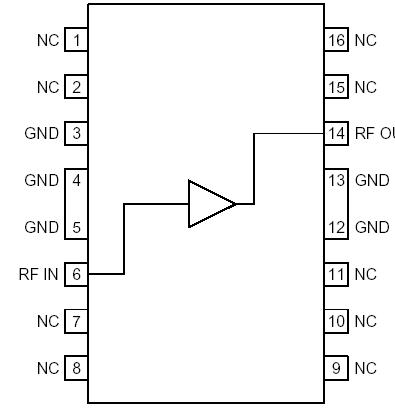

Connection Diagram




Specifications

Parameter
Rating
Unit
Device Current

Device Voltage

Input RF Power

Output Load VSWR

Ambient Operating Temperature

Storage Temperature
175

9

+10

20:1

-40 to +85

-40 to +150
mA

V

dBm



°C

°C


Frequency (MHz) 5 to 2500
Gain (dB) 16.7
NF (dB) 2.6
OP1dB (dBm) 22
IP1dB (dBm) 8
OIP3 (dBm) +36
Vcc (V) 6 to 9
Icc (mA) 85
Package/Size (Dim in mm) CJ2BAT0





Description

The RF2320 is a general purpose, low-cost, high-linearity RF amplifier IC. RF2320 is manufactured on a Gallium Arsenide process and is featured in an SOP-16 batwing package. RF2320 has been designed for use as an easily cascadable 75Ω gain block with a noise figure of less than 2dB. Gain flatness better than 0.5dB from 5MHz to 1000MHz, and high linearity make this part ideal for cable TV applications. Other applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 2500MHz. RF2320 is self-contained with 75Ω input and output impedances providing 2:1 VSWR matching. For higher input and output return losses, see the evaluation schematic.
