RF2333

Features: • DC to 6000MHz Operation• Internally matched Input and Output• 10dB Small Signal Gain• +34dBm Output IP3• +18.5dBm Output Power• Good Gain FlatnessApplication• Broadband, Low Noise Gain Blocks• IF or RF Buffer Amplifiers• Driver Stag...

product image

RF2333 Picture
See larger image
SeekIC No. : 004476236 Detail

RF2333: Features: • DC to 6000MHz Operation• Internally matched Input and Output• 10dB Small Signal Gain• +34dBm Output IP3• +18.5dBm Output Power• Good Gain FlatnessAppl...

RF2333 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2333
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• DC to 6000MHz Operation
• Internally matched Input and Output
• 10dB Small Signal Gain
• +34dBm Output IP3
• +18.5dBm Output Power
• Good Gain Flatness


Application

• Broadband, Low Noise Gain Blocks
• IF or RF Buffer Amplifiers
• Driver Stage for Power Amplifiers
• Final PA for Low Power Applications
• Broadband Test Equipment


Pinout

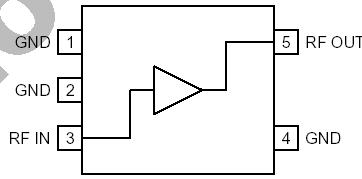

Connection Diagram


Specifications

Parameter
Rating
Unit
Supply Current

Input RF Power

Operating Ambient Temperature

Storage Temperature
120

+20

-40 to +65

-60 to +150
mA

dBm

°C

°C



Description

The RF2333 is a general purpose, low-cost RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily-cascadable 50Ω gain block. Applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 6000MHz. RF2333 is self-contained with 50Ω input and output impedances and requires only two external DC biasing elements to operate as specified. The RF2333 is available in a very small industry-standard SOT23 5-lead surface mount package, enabling compact designs which conserve board space.
