RF2338

Features: • DC to 6000MHz Operation• Internally Matched Input and Output• 12dB Small Signal Gain• +24dBm Output IP3• +11dBm Output Power• Single Positive Power SupplyApplication• Broadband, Low Noise Gain Blocks• IF or RF Buffer Amplifiers• Dri...

product image

RF2338 Picture
See larger image
SeekIC No. : 004476241 Detail

RF2338: Features: • DC to 6000MHz Operation• Internally Matched Input and Output• 12dB Small Signal Gain• +24dBm Output IP3• +11dBm Output Power• Single Positive Power Su...

RF2338 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2338
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• DC to 6000MHz Operation
• Internally Matched Input and Output
• 12dB Small Signal Gain
• +24dBm Output IP3
• +11dBm Output Power
• Single Positive Power Supply


Application

• Broadband, Low Noise Gain Blocks
• IF or RF Buffer Amplifiers
• Driver Stage for Power Amplifiers
• Final PA for Low Power Applications
• Broadband Test Equipment


Pinout

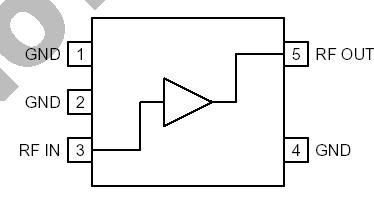

Connection Diagram


Specifications

Parameter
Rating
Unit
Supply Current

Input RF Power

Operating Ambient Temperature

Storage Temperature
75

+15

-40 to +85

-60 to +150
mA

dBm

°C

°C



Description

The RF2338 is a general purpose, low-cost RF amplifier IC. RF2338 is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily-cascadable 50Ω gain block. Applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 6000MHz. The device is self-contained with 50Ω input and output impedances and requires only two external DC biasing elements to operate as specified. The RF2338 is available in a very small industry-standard SOT 5-lead surface mount package, enabling compact designs which conserve board space.
