RF2352

Features: • Low Noise and High Intercept Point• Power Down Control• Gain Control• Single 2.7V to 3.6V Power Supply• Extremely Small MLF16 PackageApplication• TDMA/CDMA/FM Driver Amplifier• Low Noise Transmit Driver Amplifier• General Purpose Amplific...

product image

RF2352 Picture
See larger image
SeekIC No. : 004476243 Detail

RF2352: Features: • Low Noise and High Intercept Point• Power Down Control• Gain Control• Single 2.7V to 3.6V Power Supply• Extremely Small MLF16 PackageApplication• TDMA...

RF2352 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2352
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Noise and High Intercept Point
• Power Down Control
• Gain Control
• Single 2.7V to 3.6V Power Supply
• Extremely Small MLF16 Package


Application

• TDMA/CDMA/FM Driver Amplifier
• Low Noise Transmit Driver Amplifier
• General Purpose Amplification
• Commercial and Consumer Systems

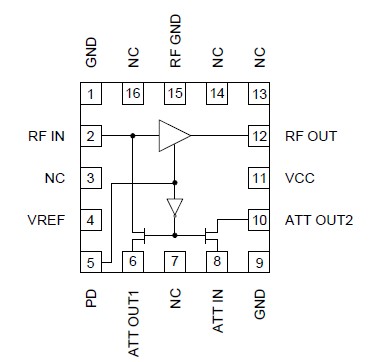

Pinout

Connection Diagram


Specifications

Parameter
Value
Unit
Supply Voltage
-0.5 to +4.5
VDC
Input RF Power
0
dBm
Operating Ambient Temperature
-40 to +85
°C
Storage Temperature
-40 to +150
°C



Description

The RF2352 is a low noise driver amplifier for 900MHz CDMA/AMPS applications.RF2347 is designed for operation from 2.7V to 3.6V, and features selectable high and low gain modes. In high gain mode, RF2347 will provide about 19dB of gain, and the linearity and current drain are set with an external resistor, allowing the designer to select the optimum performance for a given application. In the low gain, or "bypass" mode, the gain is controlled by an external attenuator network, and the device draws essentially no current. The part of RF2347 is fabricated using a high performance silicon BiCMOS process, and is packaged in a 4mmx4mm, 16-pin, leadless chip carrier.
