Product Details

Description

Features:

• Low Noise and High Intercept Point
• Adjustable Bias Current
• Power Down Control
• Single 2.5V to 6.0V Power Supply
• 150MHz to 2500MHz Operation
• Extremely Small SOT 5-Lead Package

Application

• TDMA/CDMA/FM Cellular PCS LNA
• Low Noise Transmit Driver Amplifier
• General Purpose Amplification
• Commercial and Consumer Systems

Pinout

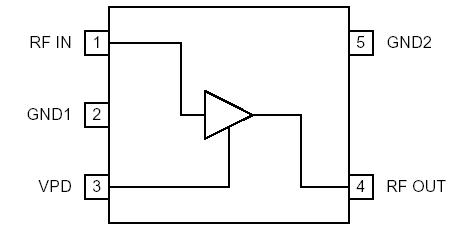

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Voltage, V_CC Power Down Voltage, V_PD Input RF Level Operating Ambient Temperature Storage Temperature	-0.5 to +8.0 <V_CC +10 -40 to +85 -40 to +150	VDC VDC dBm °C °C

Description

The RF2361 is a low noise amplifier with a very high dynamic range designed for digital cellular applications. RF2361 functions as an outstanding front end low noise amplifier or power amplifier driver amplifier in the transmit chain of digital subscriber units where low transmit noise power is a concern. When used as an LNA, the bias current can be set externally. When RF2361 used as a PA driver, the IC can operate directly from a single cell Li-ion battery and includes a power down feature that can be used to completely turn off the device. The RF2361 is featured in a standard SOT 5-lead plastic package.
