RF2362

Features:

Low Noise and High Intercept Point
Adjustable Bias Current
Power Down Control
Single 2.5V to 6.0V Power Supply
150MHz to 2500MHz Operation
Extremely Small SOT23-5 Package


Application

TDMA MA/FM PCS Tx Amplifier
Low Noise Transmit Driver Amplifier
2.4GHz WLAN Systems
General Purpose Amplification
Commercial and Consumer Systems

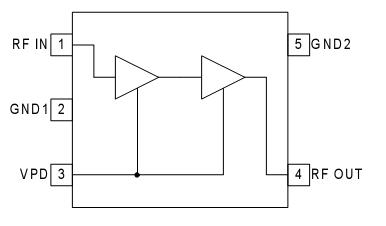

Pinout




Specifications




Description

The RF2362 is a low noise CDMA/TDMA PA driver ampli-fier with a very high dynamic range designed for transmit digital PCS applications at 1880MHz. RF2362 func-tions as an outstanding PA driver amplifier in the transmit chain of digital subscriber units where low transmit noise power is a concern. The RF2362  includes a power down fea-ture that can be used to completely turn off the device.The RF2362 is featured in a standard SOT 5-lead plastic pack-age.
