Product Details

Description

Features:

• Low Noise and High Intercept Point
• 18dBGain at 900MHz
• 21dBGain at 1900MHz
• Low Supply Current
• Single 2.5V to 5.0V Power Supply
• Very Small SOT-23-8 Plastic Package

Application

• GSM/DCS Dual-Band Handsets
• Cellular/PCS Dual-Band Handsets
• General Purpose Amplification
• Commercial and Consumer Systems

Pinout

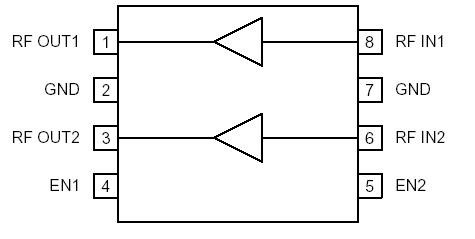

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Current Input RF Power Operating Ambient Temperature Storage Temperature	-0.5 to +6.0 +10 -40 to +85 -40 to +150	VDC dBm °C °C

Description

The RF2363 is a dual-band Low Noise Amplifier designed for use as a front-end for 950MHz GSM/ 1850MHz DCS applications and may be used for dualband cellular/PCS applications. The 900MHz LNA is a single-stage amplifier; the 1900MHz LNA is a 2-stage amplifier. The part may also be tuned for applications in other frequency bands. RF2363 has an excellent combination of low noise figure and high linearity at a very low supply current. RF2363 is packaged in a very small industry standard SOT 8-lead plastic package.
