Product Details

Description

Features:

• Low Noise and High Intercept Point
• Adjustable Bias Current
• LNA Bypass Loss is +2dB
• 150MHz to 2500MHz Operation
• Meets IMD Tests with Two Gain States/ Single Logic Control Line

Application

• CDMA/Cellular Bypass LNA
• CDMA/Cellular Bypass Driver Amplifier
• General Purpose Amplification
• Commercial and Consumer Systems

Pinout

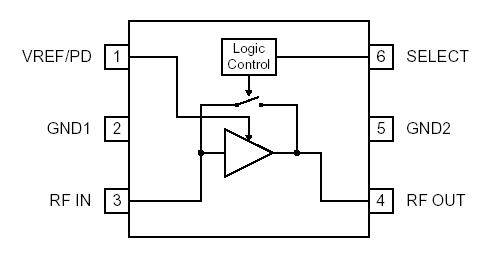

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Voltage Input RF Level Operating Ambient Temperature Storage Temperature	-0.5 to +8.0 +10 -40 to +85 -40 to +150	VDC dBm °C °C

Description

The RF2369 is a switchable low noise amplifier with a very high dynamic range designed for digital cellular applications. RF2369functions as an outstanding front end low noise amplifier. When used as an LNA, the bias current can be set externally. When used as a PA driver, the IC can operate directly from a single cell Li-ion battery and includes a power down feature that can be used to completely turn off the device. The RF2369 is featured in a standard SOT 6-lead plastic package.
