RF2376

Features: • 50dB Linear Gain Control Range• 27dBMaximumGain• Single 2.7V to 3.3V Supply• 30mA Supply Current• High Linearity• 7dB Noise FigureApplication• CDMA Cellular Handsets• TDMA Cellular HandsetsPinoutSpecifications Parameter Value U...

product image

RF2376 Picture
See larger image
SeekIC No. : 004476257 Detail

RF2376: Features: • 50dB Linear Gain Control Range• 27dBMaximumGain• Single 2.7V to 3.3V Supply• 30mA Supply Current• High Linearity• 7dB Noise FigureApplication• C...

RF2376 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2376
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 50dB Linear Gain Control Range
• 27dBMaximumGain
• Single 2.7V to 3.3V Supply
• 30mA Supply Current
• High Linearity
• 7dB Noise Figure




Application

• CDMA Cellular Handsets
• TDMA Cellular Handsets

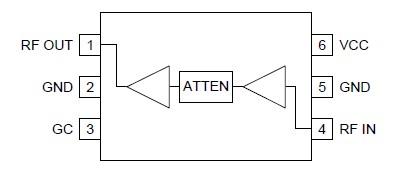

Pinout

Connection Diagram




Specifications

Parameter
Value
Unit
Supply Voltage
0 to +5.0
VDC
Input RF Power
100
dBm
Operating Ambient Temperature
-20 to +85
°C
Storage Temperature
-40 to +150
°C


Frequency (MHz) 800 to 1000
Gain (dB) 27 at 836
Vcc (V) 2.7 to 3.3
Package/Size (Dim in mm) SOT23-6





Description

The RF2376 is a linear variable gain amplifier suitable for use in TDMA and CDMA systems in the cellular band. The features of RF2376 include linear gain control, high gain, and low noise figure. The RF2376 is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (GaAs HBT) process and is featured in an industry-standard miniature 6-lead plastic SOT package.
